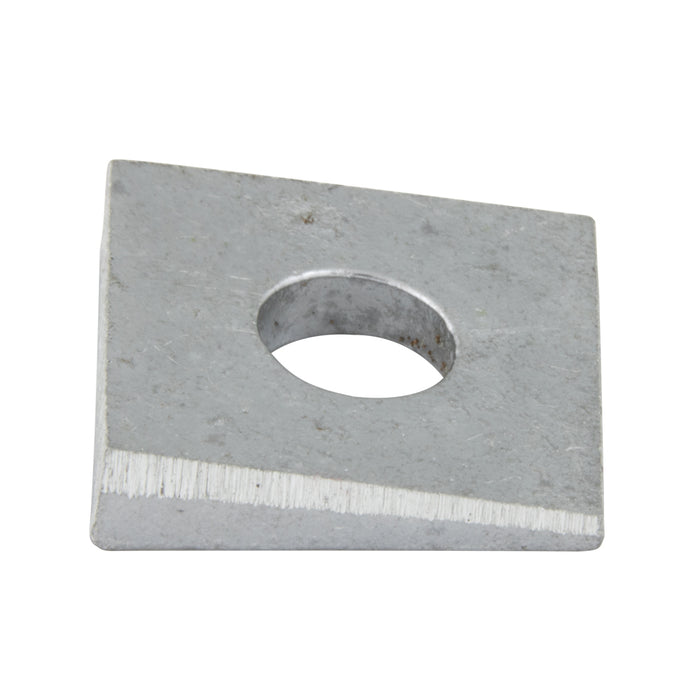

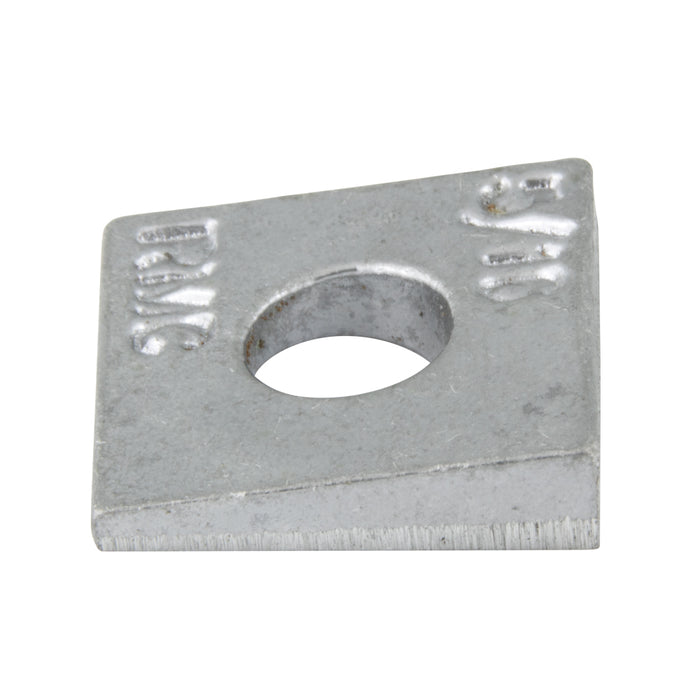

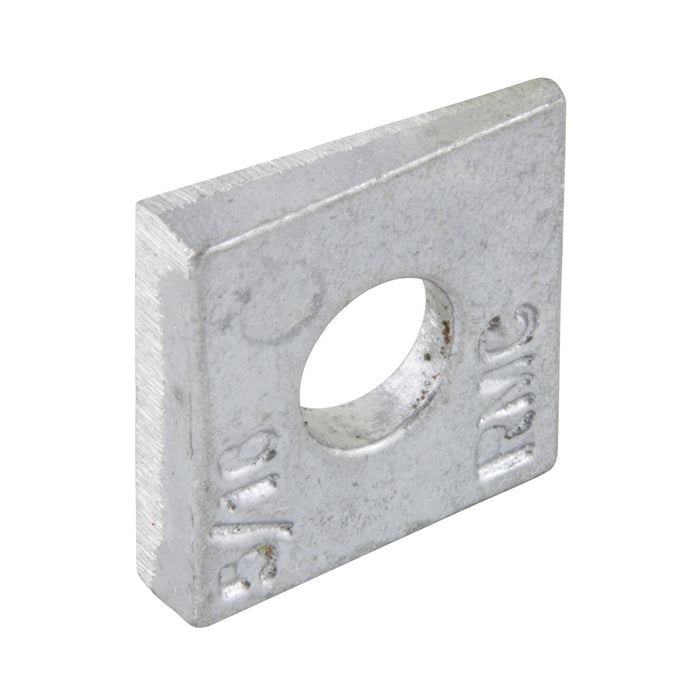

Beveled Washer, 2 IN 12; ~16° Slope, for 1/2" Bolt Dia, Aluminum Alloy 319, Plain by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-303

Beveled Washer, 2 IN 12; ~16° Slope, for 1/2" Bolt Dia, Aluminum Alloy 319, Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-303

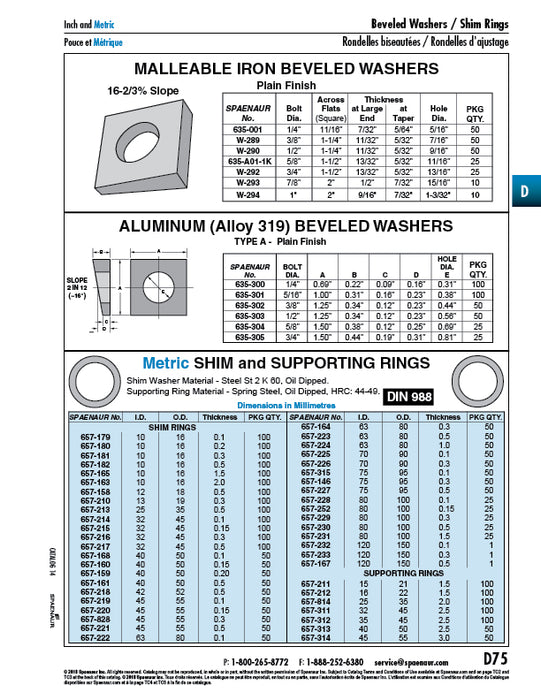

Catalog Page(s) D75,D85
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 2" 12
Compatible Bolt Size 1/2"
Hole Diameter 0.56"
Material Aluminum Alloy 319
Finish Plain
Across Flats 1.25"
Length 1.25"
Thickness at Large Taper 0.34"
Thickness at Small Taper 0.12"
With Countersunk Hole No
