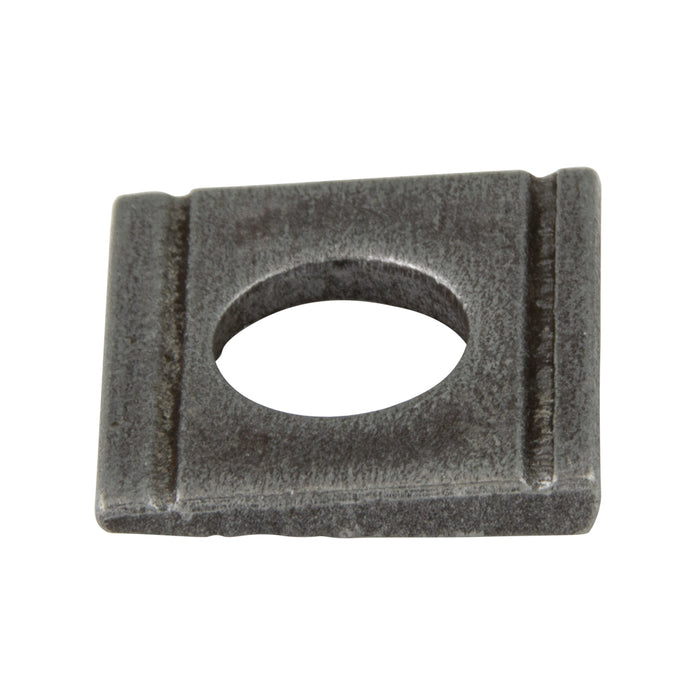

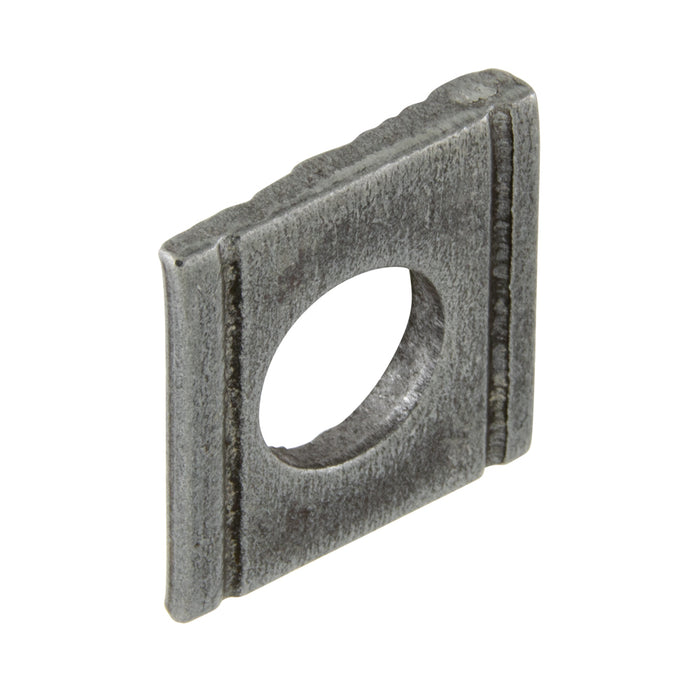

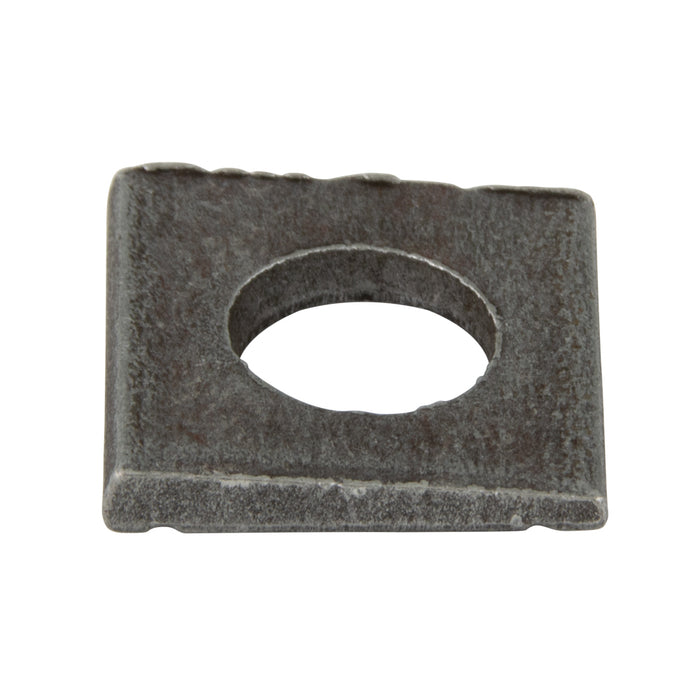

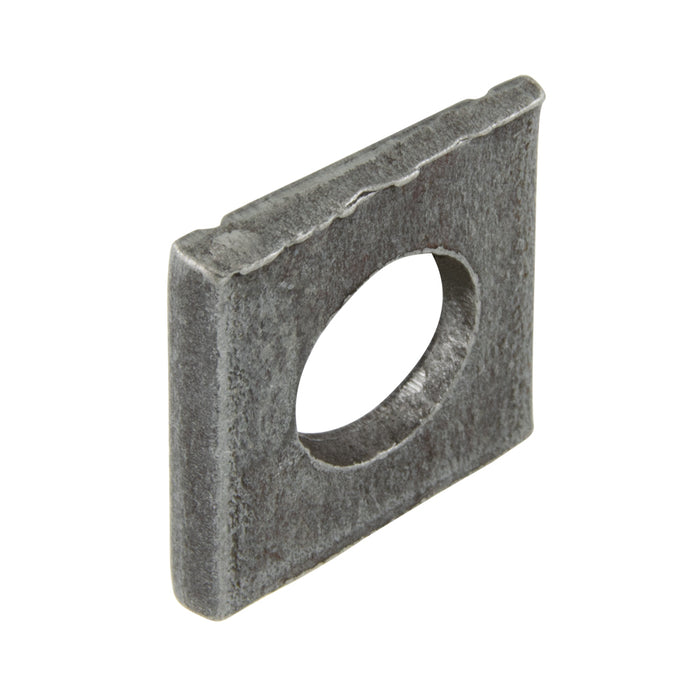

Beveled Washer, For "U" Beams, 8% Slope, for M22 Bolt Dia, 24 mm Hole Dia, Steel, Plain by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-055

Beveled Washer, For "U" Beams, 8% Slope, for M22 Bolt Dia, 24 mm Hole Dia, Steel, Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-055

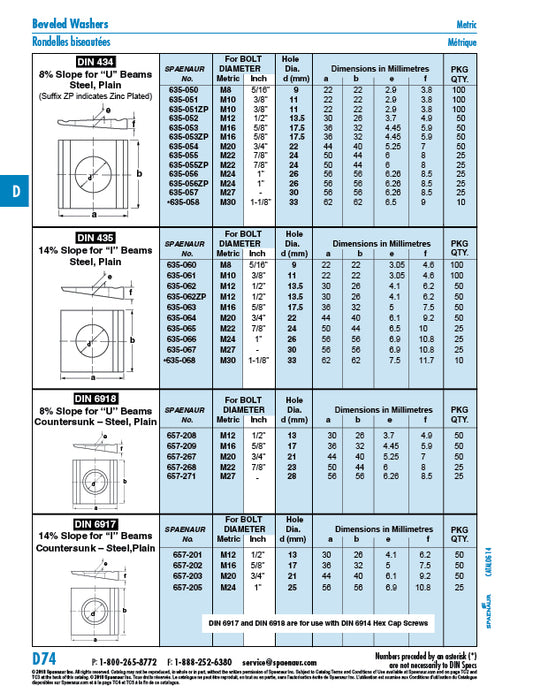

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 0.08
Compatible Bolt Size M22
Hole Diameter 24 mm
Material Steel
Finish Plain
Across Flats 44 mm
Length 50 mm
Thickness at Large Taper 8 mm
Thickness at Small Taper
With Countersunk Hole No
