Machine Screw, Raised Cheese Head, Phillips Drive, M2.5 x 0.45 mm UNC x 8 mm Length, Stainless Steel by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 425-G17-1M

Legacy Part Number(s): 425-037

Machine Screw, Raised Cheese Head, Phillips Drive, M2.5 x 0.45 mm UNC x 8 mm Length, Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 425-G17-1M

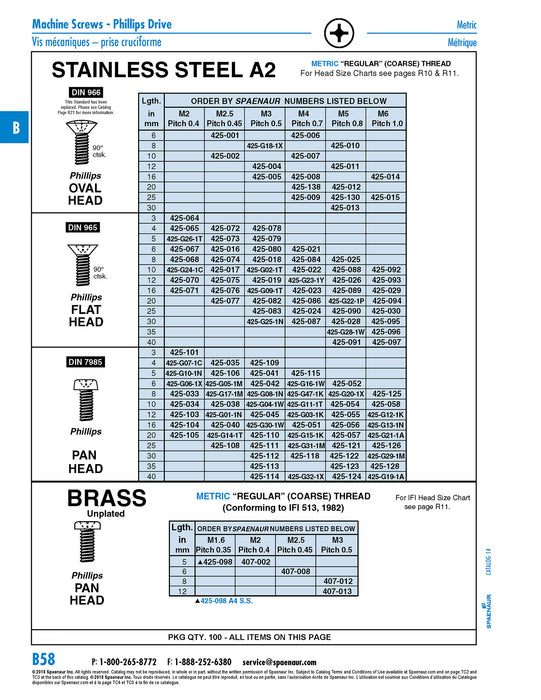

Catalog Page(s) B58
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 425-037
Head Type Raised Cheese Head
Drive Type Phillips
Thread Size M2.5 x 0.45 mm
Thread Standard UNC
Length 8 mm
Material Stainless Steel
Material Grade | Material Class A2
Head Diameter/Width Across Flats 5 mm
Head Height 2 mm
