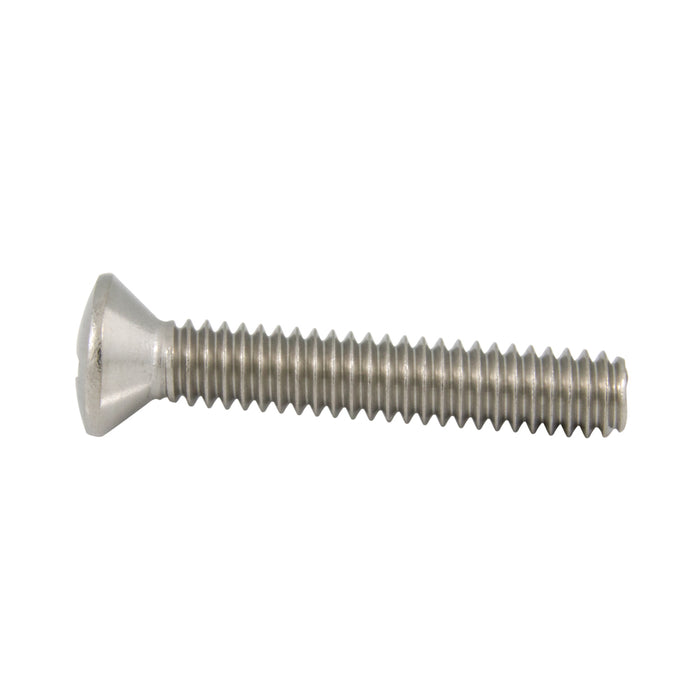

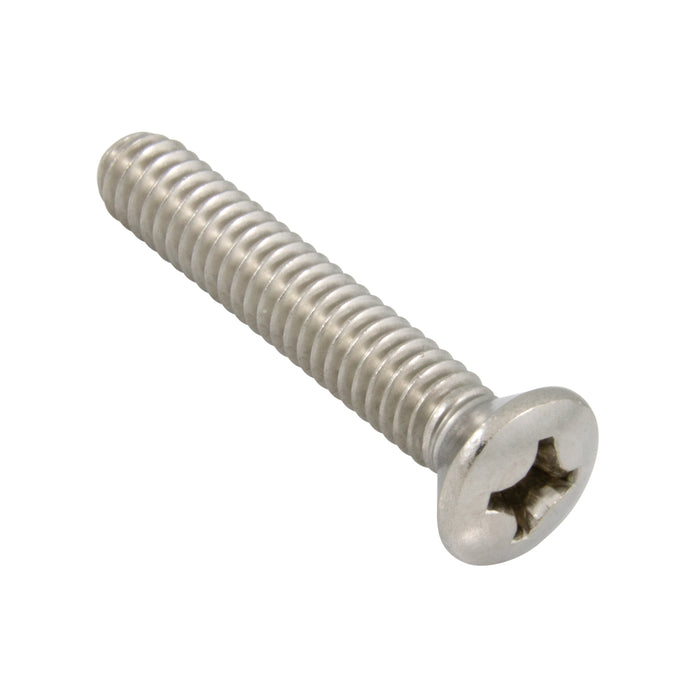

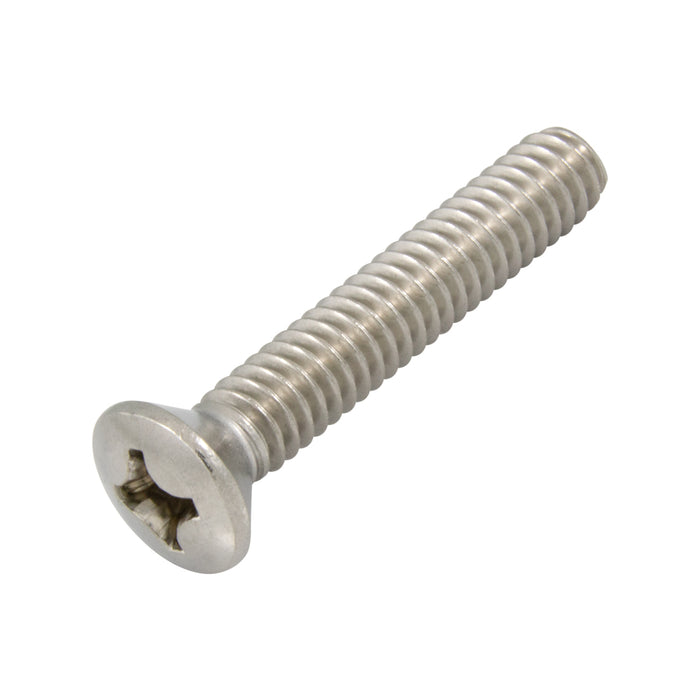

Machine Screw, Oval Head, Phillips Drive, M3 x 0.50 mm UNC x 16 mm Length, Stainless Steel

*Representative images - please refer to the product specifications for exact product information

Part Number: 425-005

Machine Screw, Oval Head, Phillips Drive, M3 x 0.50 mm UNC x 16 mm Length, Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 425-005

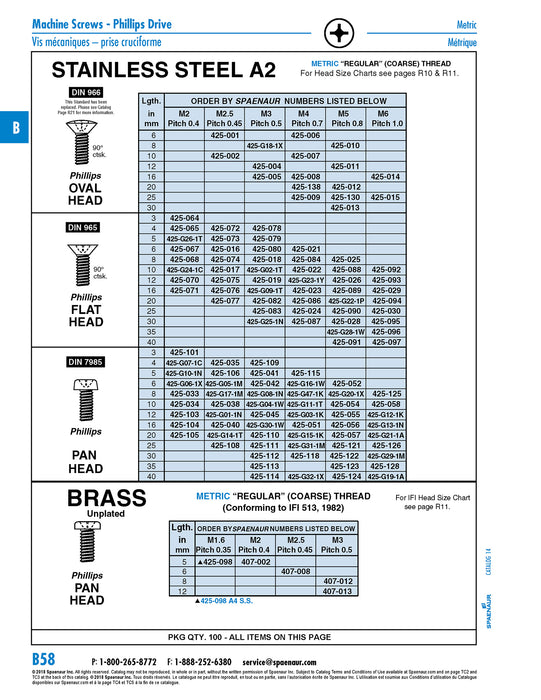

Catalog Page(s) B58
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Oval Head
Drive Type Phillips
Thread Size M3 x 0.50 mm
Thread Standard UNC
Length 16 mm
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 966
Countersunk 90°
Head Diameter/Width Across Flats 5.6 mm
Head Height 1.65 mm
