Machine Screw, Pan Head, Phillips Drive, 1/4"-20 UNC x 1-1/4" Length, Stainless Steel by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 424-F78-1C

Legacy Part Number(s): 424-113

Machine Screw, Pan Head, Phillips Drive, 1/4"-20 UNC x 1-1/4" Length, Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 424-F78-1C

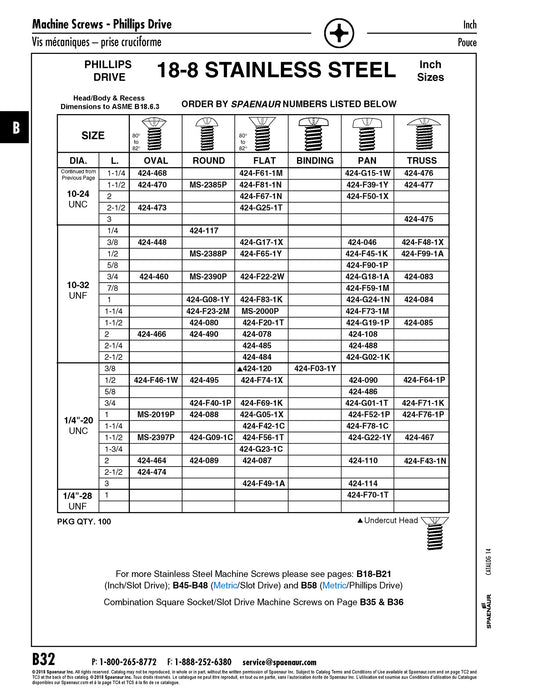

Catalog Page(s) B32
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 424-113
Head Type Pan Head
Drive Type Phillips
Thread Size 1/4"-20
Thread Standard UNC
Length 1-1/4"
Material Stainless Steel
Material Grade | Material Class 18-8
Standard ASME/ANSI B18.6.3
Head Diameter/Width Across Flats 0.473"-0.492"
Head Height 0.130"-0.144"
