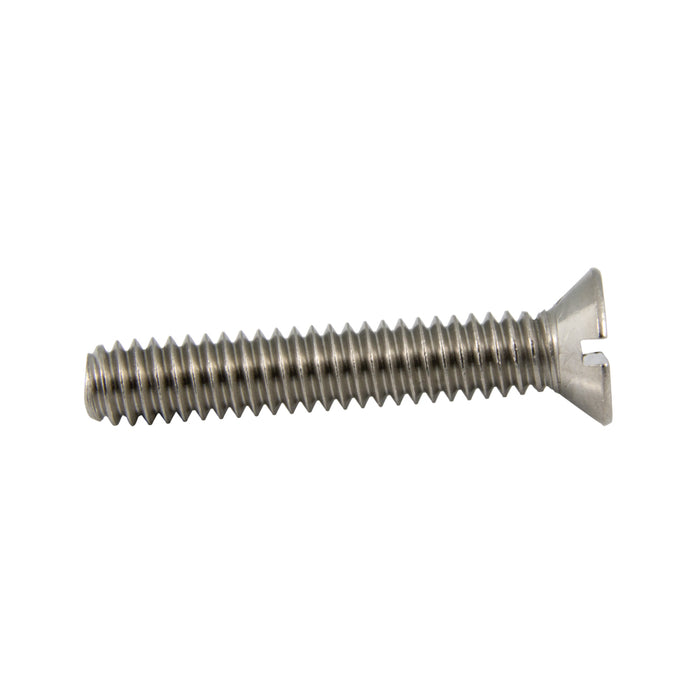

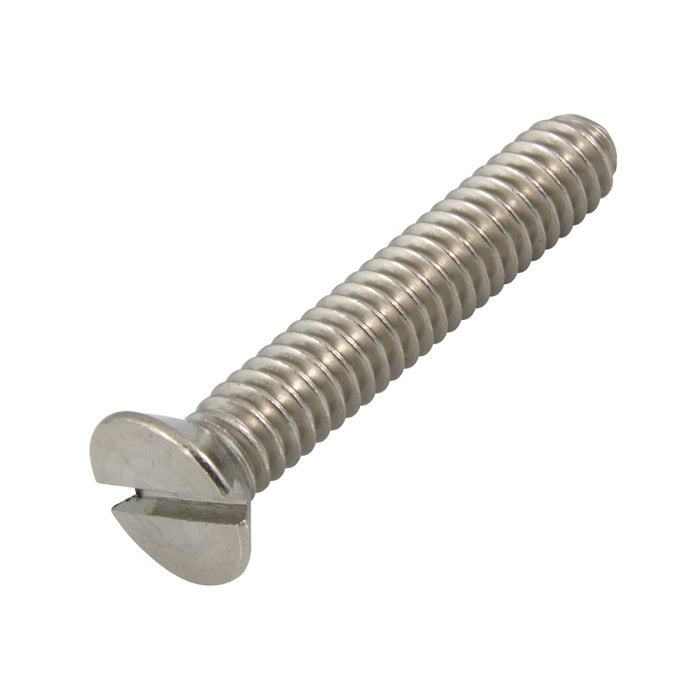

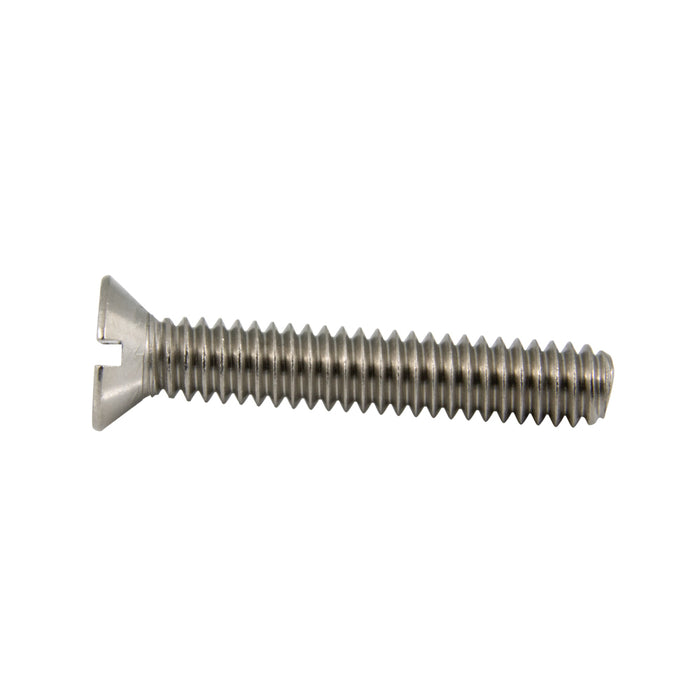

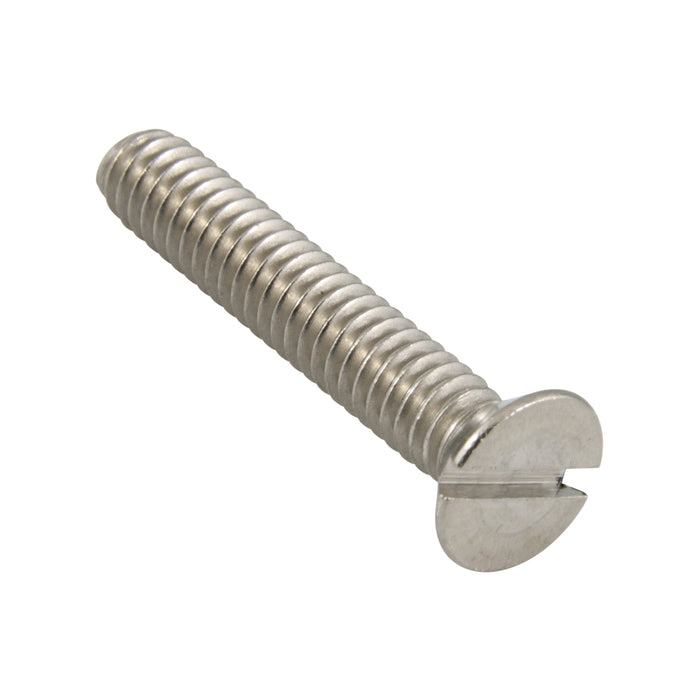

Machine Screw, Flat Head, Slotted Drive, #0-80 UNF x 3/16" Length, Stainless Steel by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 420-A47-1W

Legacy Part Number(s): MS-2031

Machine Screw, Flat Head, Slotted Drive, #0-80 UNF x 3/16" Length, Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 420-A47-1W

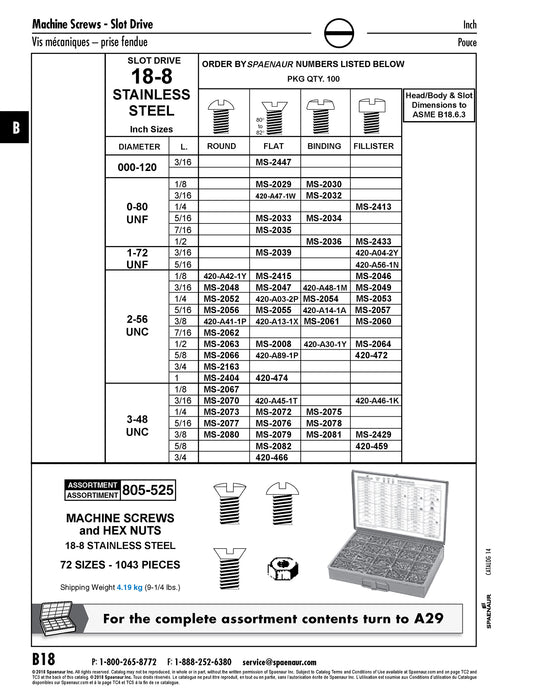

Catalog Page(s) B18
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-2031
Head Type Flat Head
Drive Type Slotted
Thread Size #0-80
Thread Standard UNF
Length 3/16"
Material Stainless Steel
Material Grade | Material Class 18-8
Standard ASME/ANSI B18.6.3
Countersunk 80°-82°
Head Diameter/Width Across Flats 0.099"-0.119"
Head Height 0.035"
