Machine Screw, Binding Slot Head #8-32 UNC x 5/16 LONG Brass ANSI B18.6.3-Latest

Part Number: 400-B30-1T

Legacy Part Number(s): MS-920

Machine Screw, Binding Slot Head #8-32 UNC x 5/16 LONG Brass ANSI B18.6.3-Latest

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 400-B30-1T

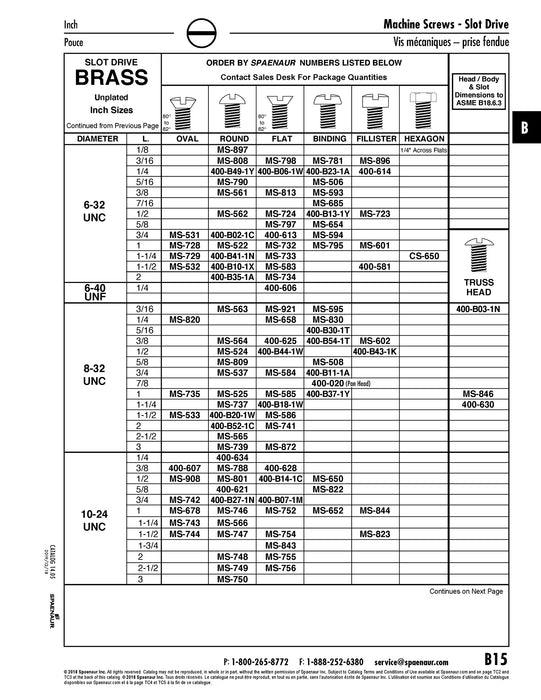

Catalog Page(s) B15
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-920
Head Type Binding Head
Drive Type Slotted
Thread Size #8-32
Thread Standard UNC
Length 5/16"
Material Brass
Finish Plain
Standard ASME/ANSI B18.6.3
Head Diameter/Width Across Flats 0.326"-0.344"
Head Height 0.095"-0.105"
