Machine Screw, Round Head, Slotted Drive, #12-24 UNC x 3/4" Length, Brass Plain by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 400-B22-1X

Legacy Part Number(s): MS-850

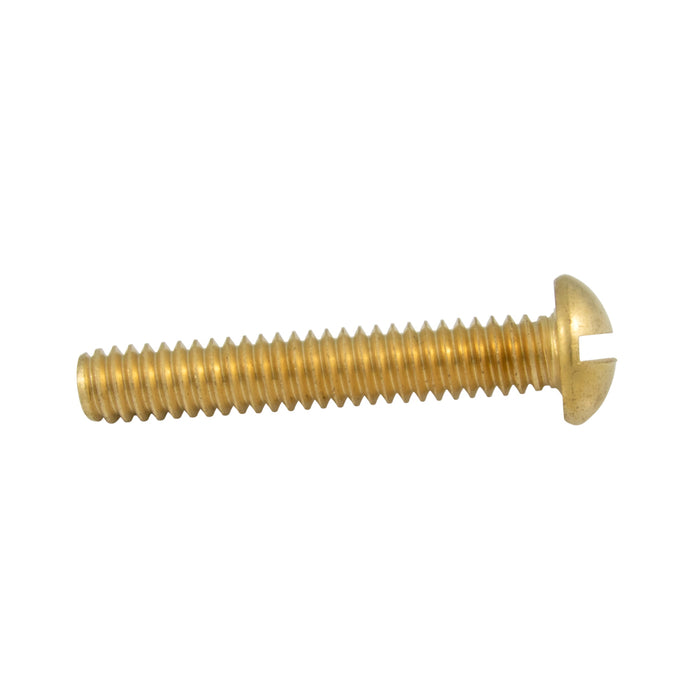

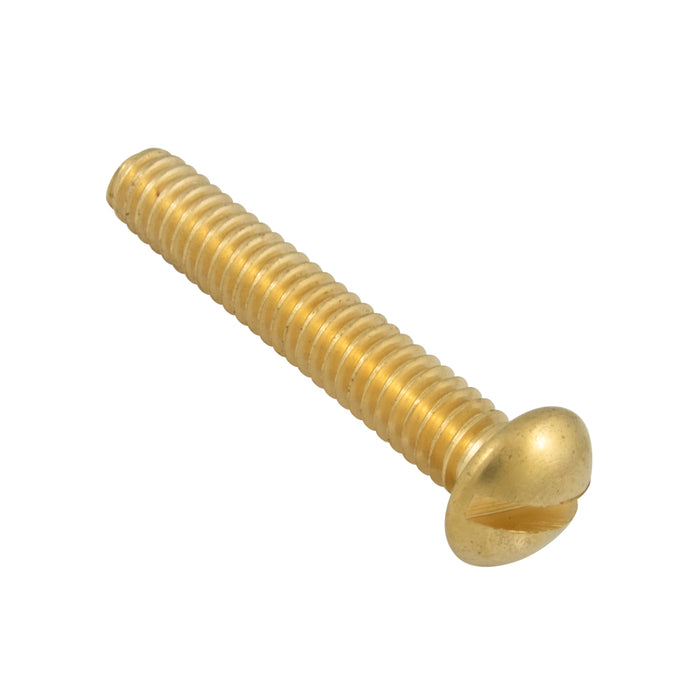

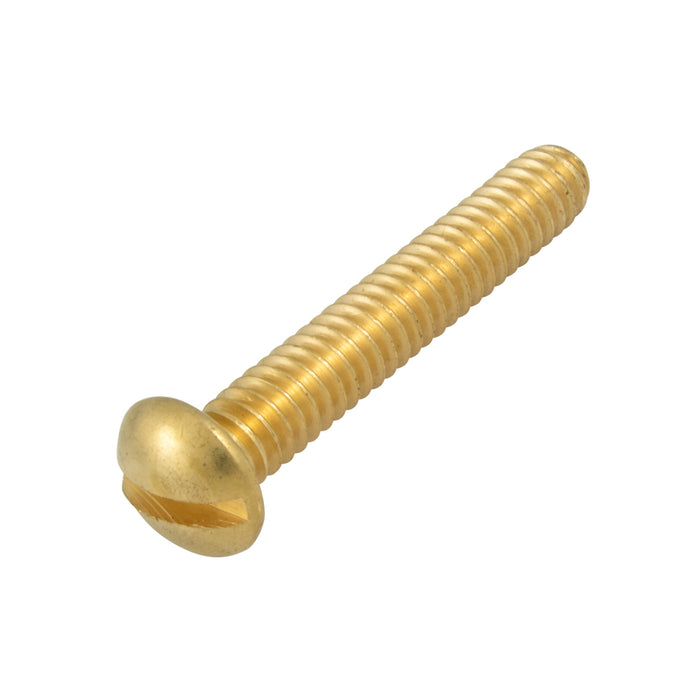

Machine Screw, Round Head, Slotted Drive, #12-24 UNC x 3/4" Length, Brass Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 400-B22-1X

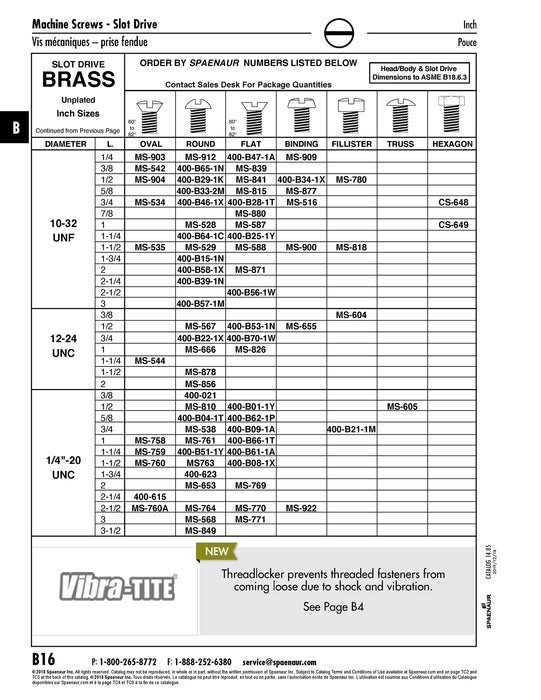

Catalog Page(s) B16
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-850
Head Type Round Head
Drive Type Slotted
Thread Size #12-24
Thread Standard UNC
Length 3/4"
Material Brass
Finish Plain
Standard ASME/ANSI B18.6.3
Head Diameter/Width Across Flats 0.382"-0.408"
Head Height 0.139"-0.153"
