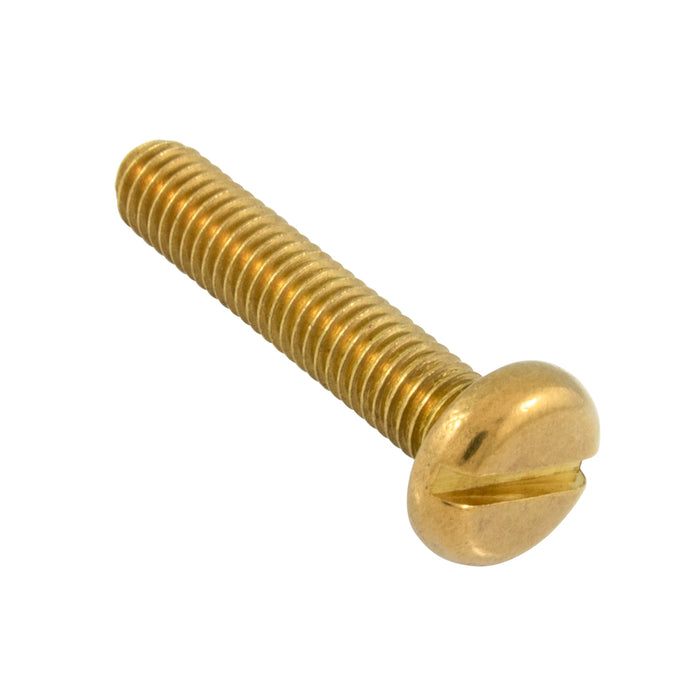

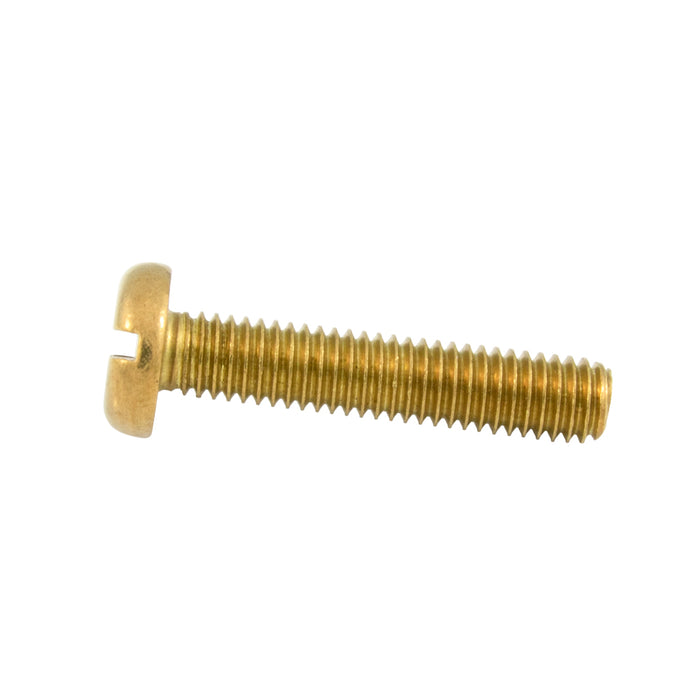

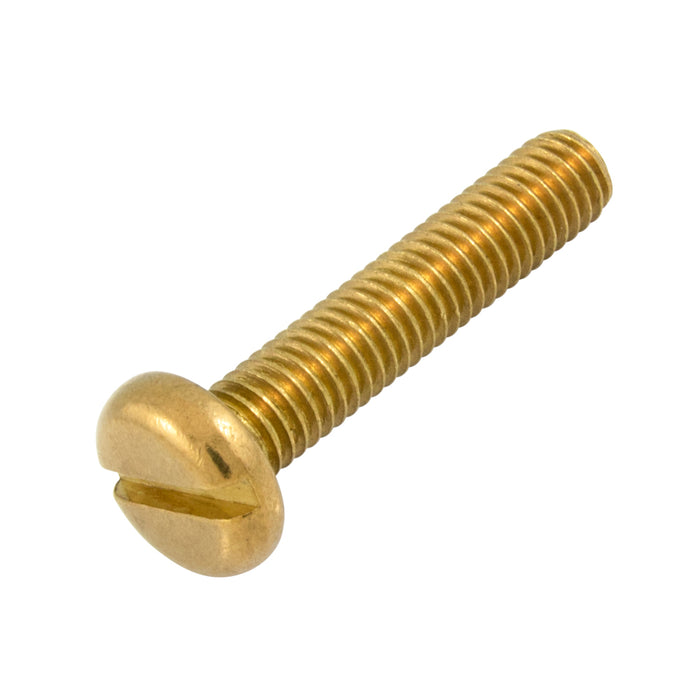

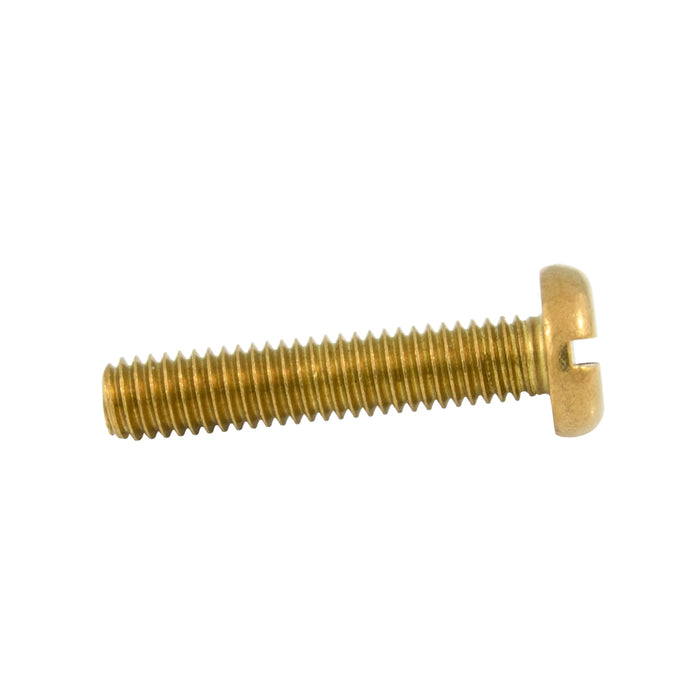

Pan Slot Head Machine Screw #8-32 UNC x 7/8" LONG Brass ANSI B18.6.3-1972

Part Number: 400-020

Pan Slot Head Machine Screw #8-32 UNC x 7/8" LONG Brass ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 400-020

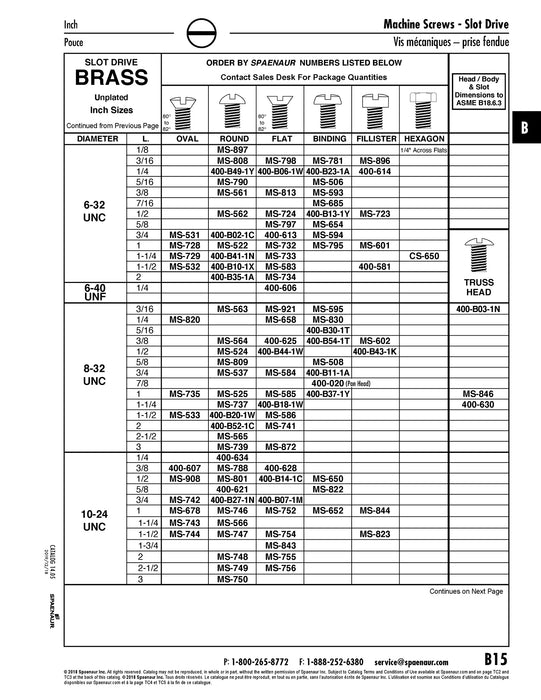

Catalog Page(s) B15
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Pan Head
Drive Type Slotted
Thread Size #8-32
Thread Standard UNC
Length 7/8"
Material Brass
Finish Plain
Standard ASME/ANSI B18.6.3
Head Diameter/Width Across Flats 0.306"-0.322"
Head Height 0.085"-0.096"
