Machine Screw, Flat Head, Phillips Drive, 1/4"-20 UNC x 1-1/2" Length, Steel Zinc Plated Trivalent by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 385-B81-1K

Legacy Part Number(s): MS-454P

Machine Screw, Flat Head, Phillips Drive, 1/4"-20 UNC x 1-1/2" Length, Steel Zinc Plated Trivalent

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-B81-1K

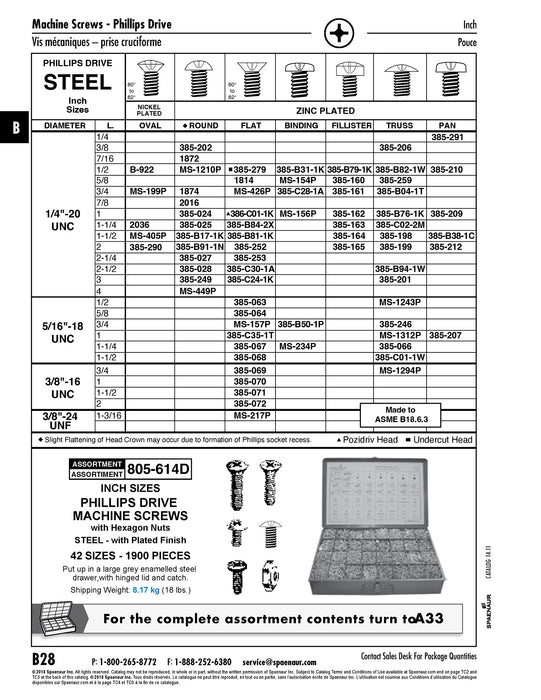

Catalog Page(s) B28
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-454P
Head Type Flat Head
Drive Type Phillips
Thread Size 1/4"-20
Thread Standard UNC
Length 1-1/2"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Countersunk 80°-82°
Hardness B70-B100
Head Diameter/Width Across Flats 0.452"-0.507"
Head Height 0.153"
