Machine Screw, Phillips Pan HD 1/4"-20 UNC x 1-1/2" LG Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3 Latest

Part Number: 385-B38-1C

Legacy Part Number(s): 385-208

Machine Screw, Phillips Pan HD 1/4"-20 UNC x 1-1/2" LG Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3 Latest

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-B38-1C

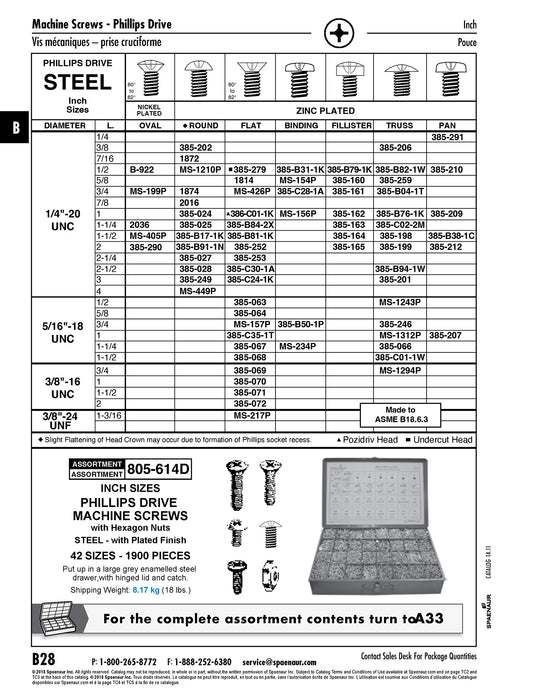

Catalog Page(s) B28
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 385-208
Head Type Pan Head
Drive Type Phillips
Thread Size 1/4"-20
Thread Standard UNC
Length 1-1/2"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.473"-0.492"
Head Height 0.130"-0.144"
