Machine Screw, Round Phillips Head #6-32 UNC x 5/16" Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: 385-273

Machine Screw, Round Phillips Head #6-32 UNC x 5/16" Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-273

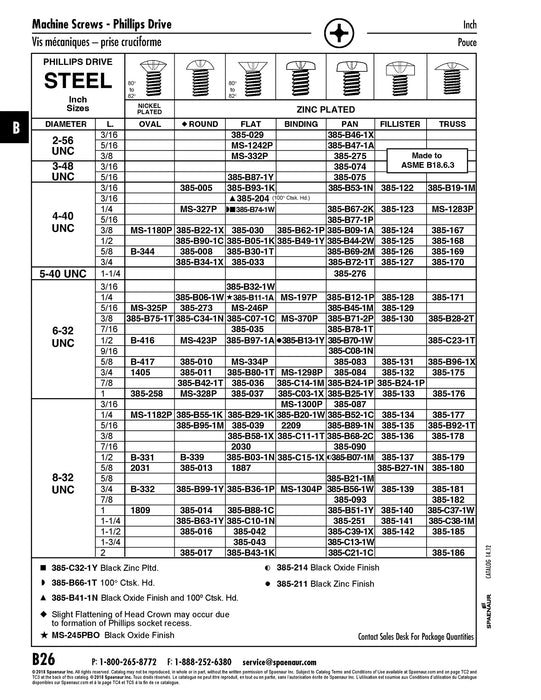

Catalog Page(s) B26
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Round Head
Drive Type Phillips Socket Recess
Thread Size #6-32
Thread Standard UNC
Length 5/16"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.240"-0.260"
Head Height 0.091"-0.103"
