Machine Screw, Phillips Fillister #8-32 UNC x 1 1/4" LG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: 385-141

Machine Screw, Phillips Fillister #8-32 UNC x 1 1/4" LG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-141

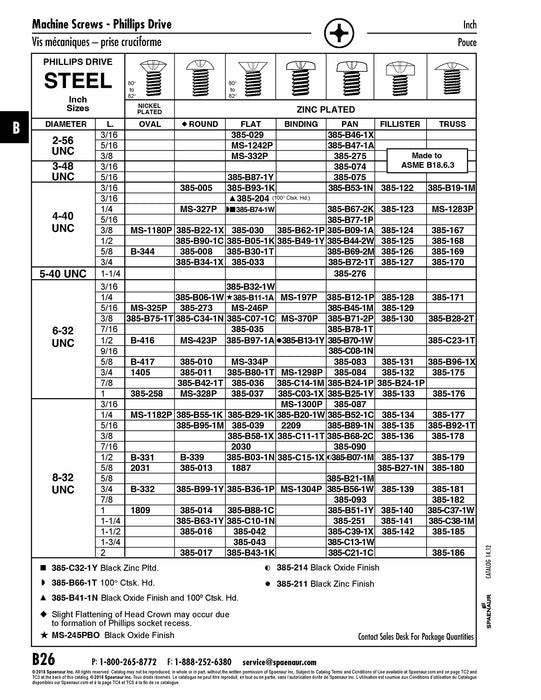

Catalog Page(s) B26
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Fillister Head
Drive Type Phillips
Thread Size #8-32
Thread Standard UNC
Length 1-1/4"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.250"-0.270"
Head Height 0.133"-0.156"
