Machine Screw, Phillips Flat HD #10-24 UNC x 5/8" LG Low Carbon Steel Zinc Plated ANSI B18.6.3

Part Number: 385-045

Machine Screw, Phillips Flat HD #10-24 UNC x 5/8" LG Low Carbon Steel Zinc Plated ANSI B18.6.3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-045

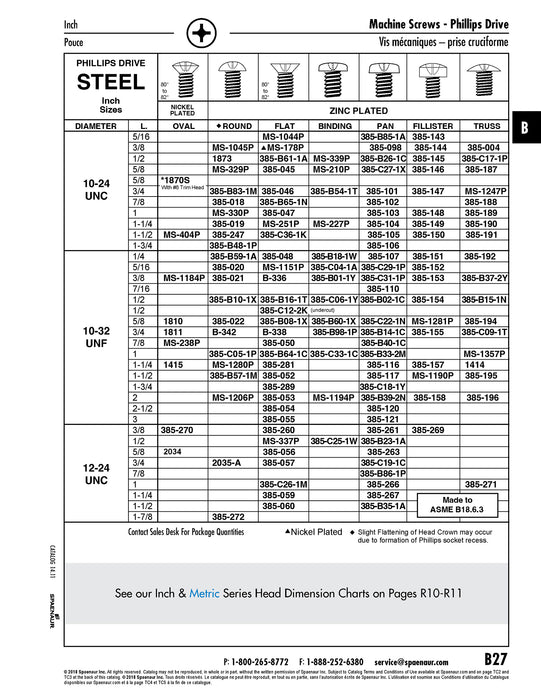

Catalog Page(s) B27
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Phillips
Thread Size #10-24
Thread Standard UNC
Length 5/8"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Countersunk 80°-82°
Hardness B70-B100
Head Diameter/Width Across Flats 0.340"-0.385"
Head Height 0.116"
