Machine Screw, Phillips Round HD #10-32 UNF x 5/8" LG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: 385-022

Machine Screw, Phillips Round HD #10-32 UNF x 5/8" LG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 385-022

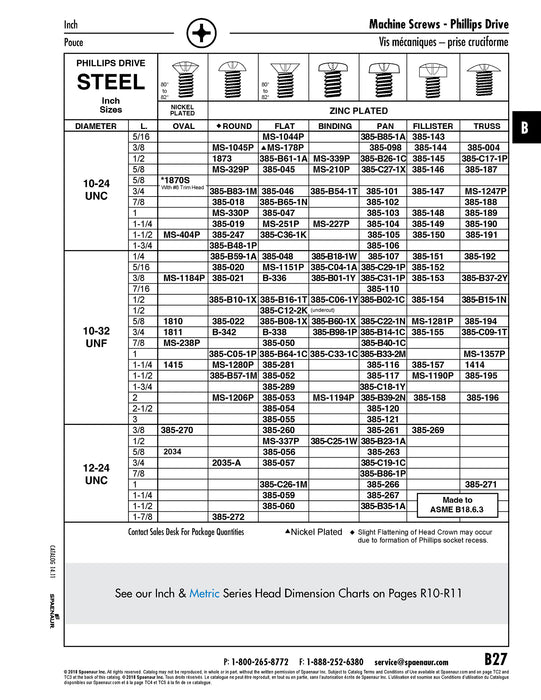

Catalog Page(s) B27
System of Measurement Imperial
Head Type Round Head
Drive Type Phillips Socket Recess
Thread Size #10-32
Thread Standard UNF
Length 5/8"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.334"-0.359"
Head Height 0.123"-0.137"
