Machine Screw Slot Flat HD, DIN 963 M6 x 1.00 Pitch x 12mm LG Low Carbon Steel Zinc Chromate PLTD DIN 963/4.8-ZP M6X12

Part Number: 382-B19-1P

Legacy Part Number(s): 382-144

Machine Screw Slot Flat HD, DIN 963 M6 x 1.00 Pitch x 12mm LG Low Carbon Steel Zinc Chromate PLTD DIN 963/4.8-ZP M6X12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 382-B19-1P

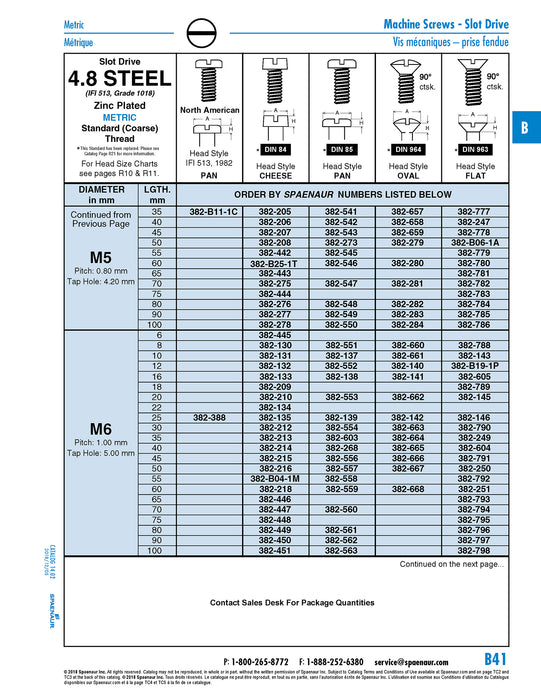

Catalog Page(s) B41
System of Measurement Metric
ROHS Compliant [no]
Certificate of Conformance Available [yes]
Legacy Part Number 382-144
Head Type Flat Head
Drive Type Slotted
Thread Size M6 x 1.00 mm
Thread Standard UNC
Length 12 mm
Material Steel
Finish Zinc Plated Chromate
Material Grade | Material Class Class 4.8
Standard DIN 963
Countersunk 90°
Head Diameter/Width Across Flats 11 mm
Head Height 3 mm
