Machine Screw, Binding Head, Slotted Drive, #10-32 UNF x 5/16" Length, Steel Zinc Plated by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 380-F74-1K

Legacy Part Number(s): MS-1000

Machine Screw, Binding Head, Slotted Drive, #10-32 UNF x 5/16" Length, Steel Zinc Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F74-1K

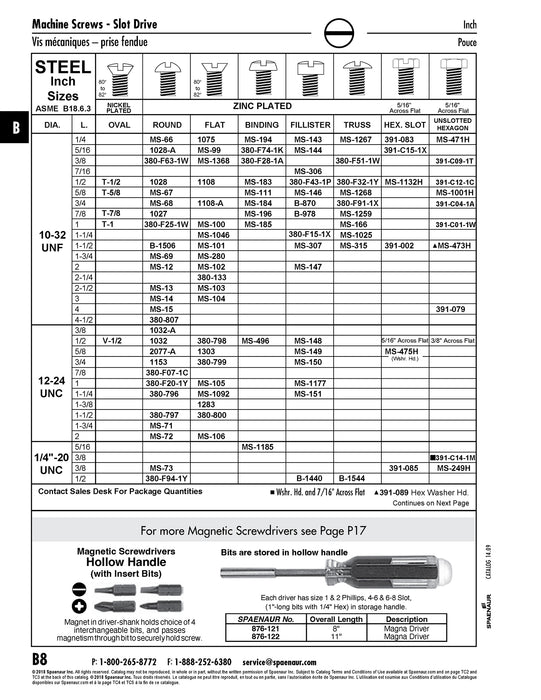

Catalog Page(s) B8
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-1000
Head Type Binding Head
Drive Type Slotted
Thread Size #10-32
Thread Standard UNF
Length 5/16"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.378"-0.399"
Head Height 0.112"-0.123"
