Machine Screw, Binding Head, Slotted Drive, #8-32 UNC x 5/8" Length, Steel Zinc Plated Trivalent

*Representative images - please refer to the product specifications for exact product information

Part Number: 380-F47-1T

Legacy Part Number(s): MS-152

Machine Screw, Binding Head, Slotted Drive, #8-32 UNC x 5/8" Length, Steel Zinc Plated Trivalent

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F47-1T

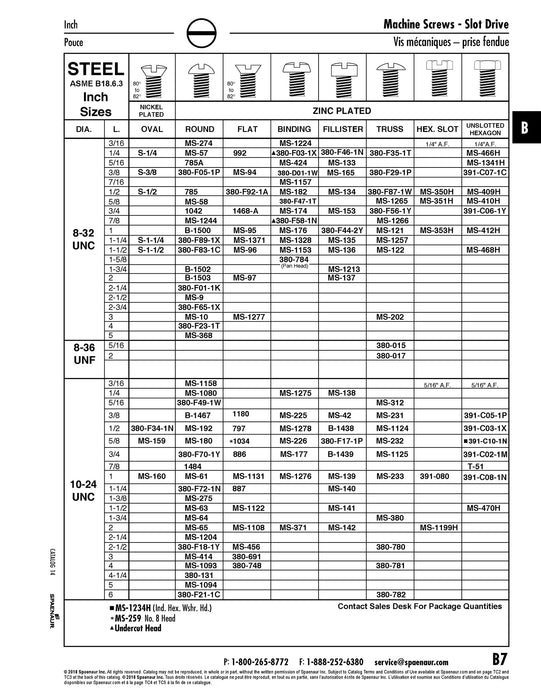

Catalog Page(s) B7
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-152
Head Type Binding Head
Drive Type Slotted
Thread Size #8-32
Thread Standard UNC
Length 5/8"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.326"-0.344"
Head Height 0.095"-0.105"
