Machine Screw, Binding Slot Head #4-40 UNC x 1/8" Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3-1972

Part Number: 380-F45-1C

Legacy Part Number(s): MS-189

Machine Screw, Binding Slot Head #4-40 UNC x 1/8" Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F45-1C

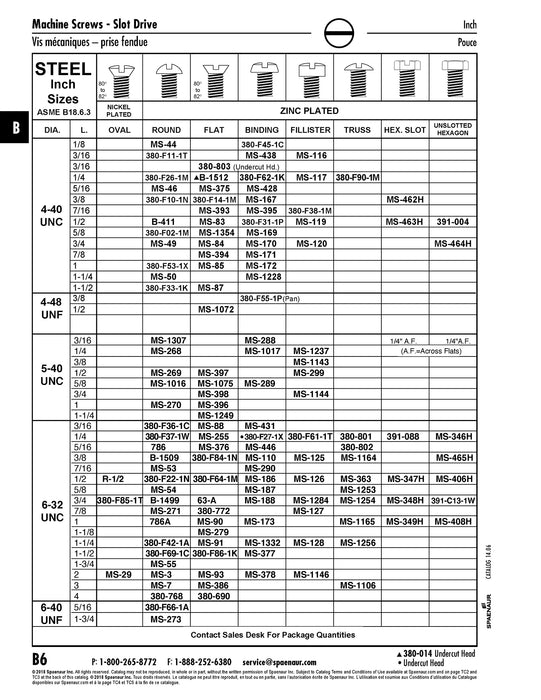

Catalog Page(s) B6
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-189
Head Type Binding Head
Drive Type Slotted
Thread Size #4-40
Thread Standard UNC
Length 1/8"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.223"-0.235"
Head Height 0.061"-0.068"
