Machine Screw, Round Head, Slotted Drive, 3/8"-16 UNC x 2-1/2" Length, Steel Zinc Plated Trivalent

*Representative images - please refer to the product specifications for exact product information

Part Number: 380-F40-1M

Legacy Part Number(s): 380-786

Machine Screw, Round Head, Slotted Drive, 3/8"-16 UNC x 2-1/2" Length, Steel Zinc Plated Trivalent

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F40-1M

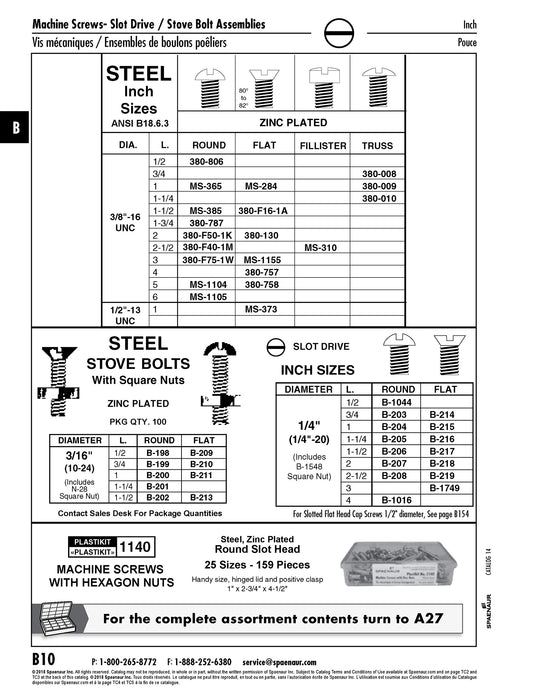

Catalog Page(s) B10
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 380-786
Head Type Round Head
Drive Type Slotted
Thread Size 3/8"-16
Thread Standard UNC
Length 2-1/2"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.670"-0.708"
Head Height 0.237"-0.256"
