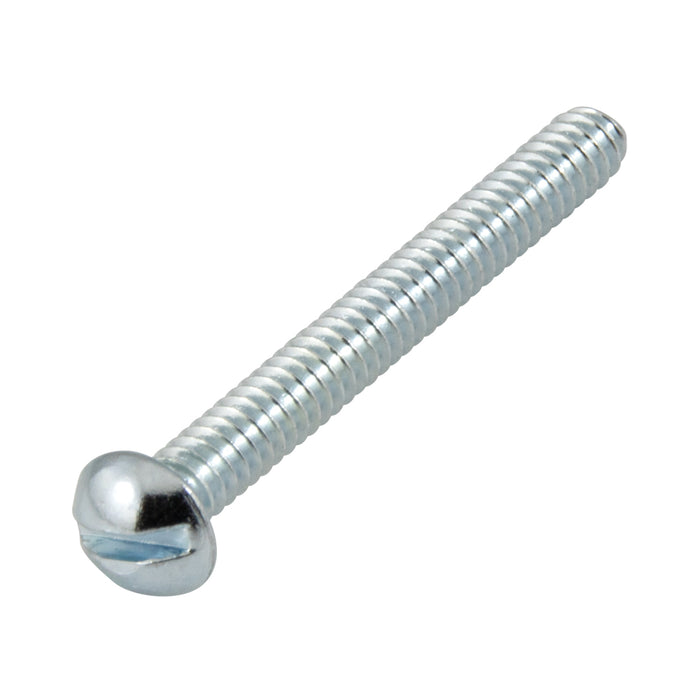

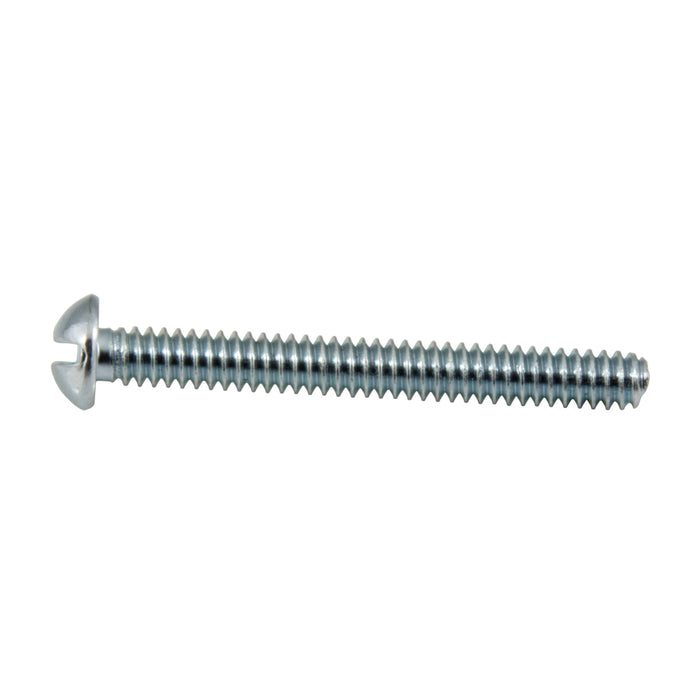

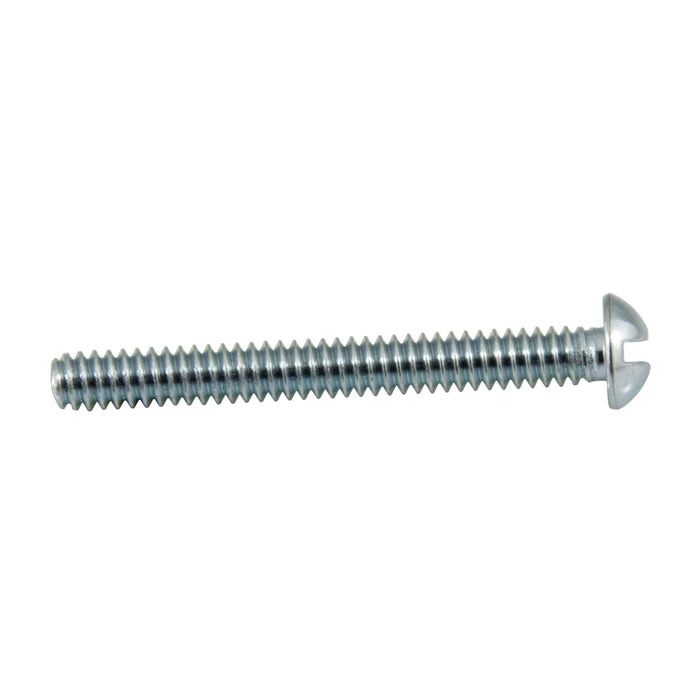

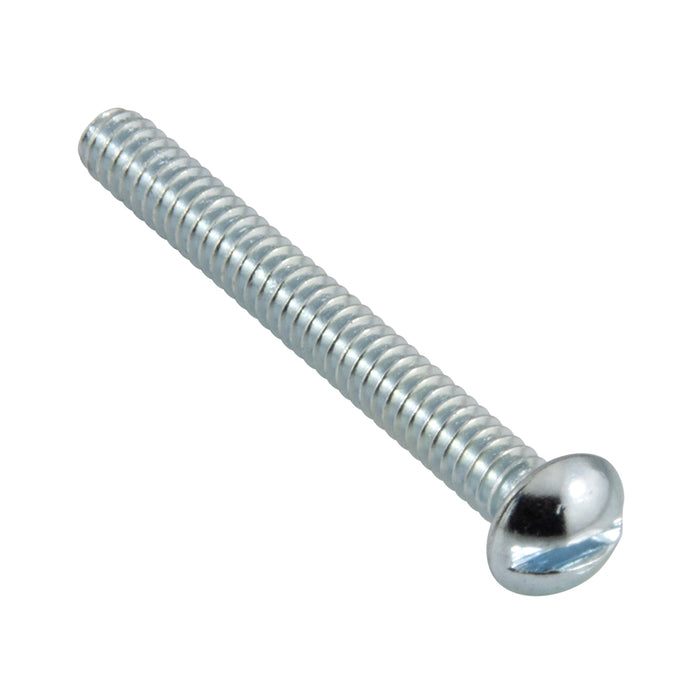

Machine Screw Round Slot Head #6-32 UNC x 1/4" LONG Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3-1972

Part Number: 380-F37-1W

Legacy Part Number(s): 1024

Machine Screw Round Slot Head #6-32 UNC x 1/4" LONG Low Carbon Steel Trivalent Zinc Plated, ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F37-1W

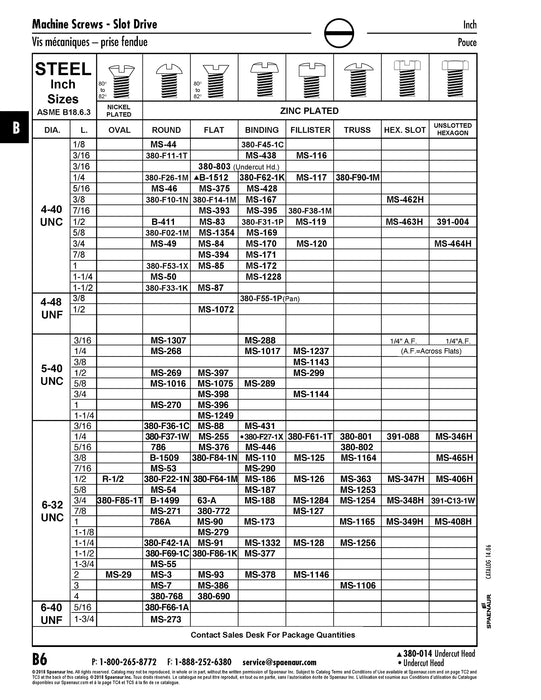

Catalog Page(s) B6
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 1024
Head Type Round Head
Drive Type Slotted
Thread Size #6-32
Thread Standard UNC
Length 1/4"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.240"-0.260"
Head Height 0.091"-0.103"
