Machine Screw, Round Head, Slotted Drive, #2-56 UNC x 3/4" Length, Steel Zinc Plated Trivalent by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 380-F04-1A

Legacy Part Number(s): MS-39

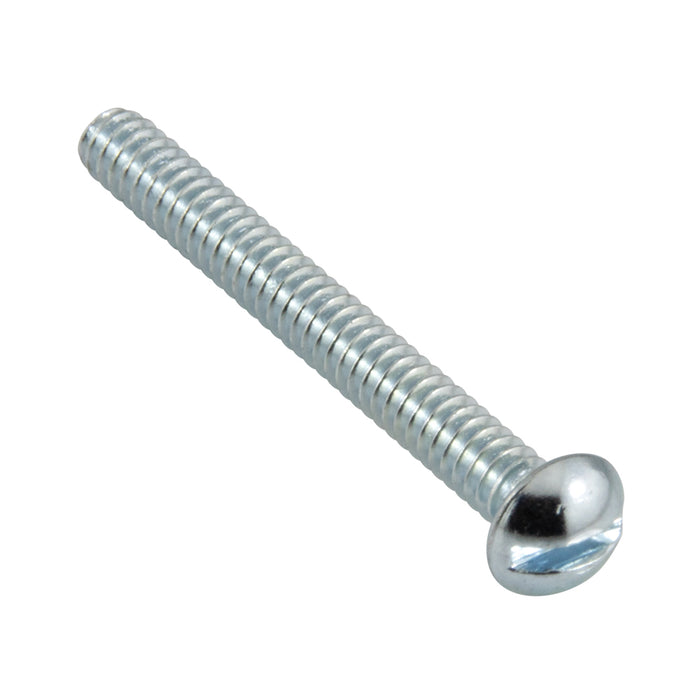

Machine Screw, Round Head, Slotted Drive, #2-56 UNC x 3/4" Length, Steel Zinc Plated Trivalent

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-F04-1A

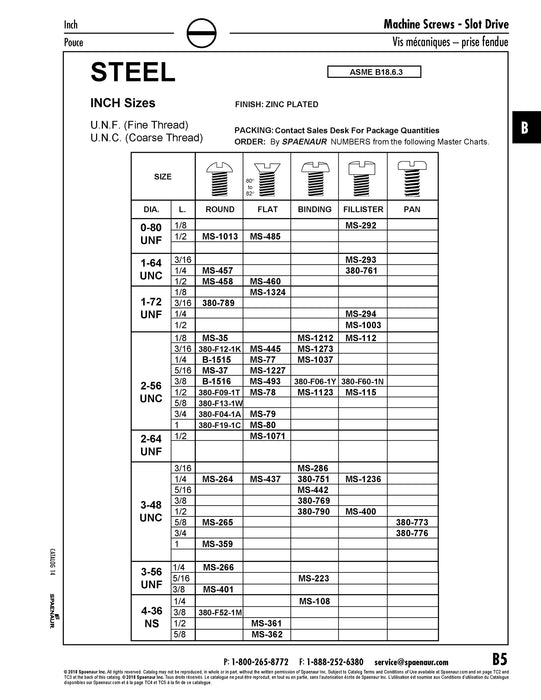

Catalog Page(s) B5
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number MS-39
Head Type Round Head
Drive Type Slotted
Thread Size #2-56
Thread Standard UNC
Length 3/4"
Material Steel
Finish Zinc Plated Trivalent
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.146"-0.162"
Head Height 0.059"-0.069"
