Machine Screw, Slot Truss HD 5/16"-18 UNC x 2 1/2" LONG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: 380-005

Machine Screw, Slot Truss HD 5/16"-18 UNC x 2 1/2" LONG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 380-005

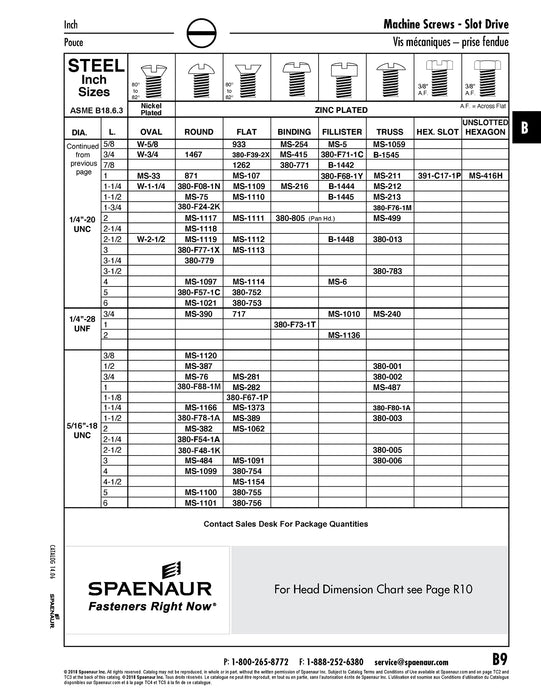

Catalog Page(s) B9
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Truss Head
Drive Type Slotted
Thread Size 5/16"-18
Thread Standard UNC
Length 2-1/2"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.666"-0.698"
Head Height 0.162"-0.183"
