Type U Drive Screw, Round Head, #0 Gauge(0.073") x 1/4" Length, Stainless Steel , ASME/ANSI B18.6.4 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 376-H17-1X

Legacy Part Number(s): 376-804

Type U Drive Screw, Round Head, #0 Gauge(0.073") x 1/4" Length, Stainless Steel , ASME/ANSI B18.6.4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 376-H17-1X

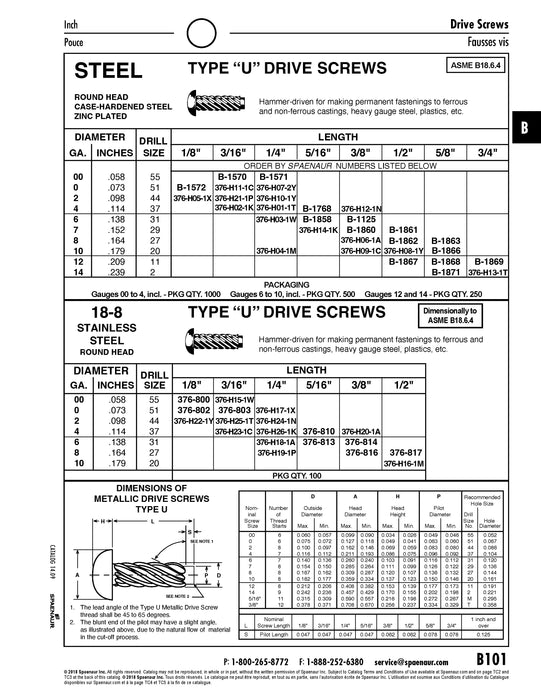

Catalog Page(s) B101
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 376-804
Screw Type Type U
Head Type Round Head
Length 1/4"
Material Stainless Steel
Material Grade | Material Class 18-8
Thread Diameter #0 Gauge(0.073")
Compatible Hole Size 0.067"
Compatible Drill Size No 51
Head Diameter 0.127" Max; 0.118" Min
Head Height 0.049" Max; 0.041" Min
Standard ASME/ANSI B18.6.4
