Type U Drive Screw, Round Head, #10 Gauge(0.179") x 1/4" Length, Case-Hardened Steel Trivalent Zinc Plated, ASME/ANSI B18.6.4 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 376-H04-1M

Legacy Part Number(s): B-1809

Type U Drive Screw, Round Head, #10 Gauge(0.179") x 1/4" Length, Case-Hardened Steel Trivalent Zinc Plated, ASME/ANSI B18.6.4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 376-H04-1M

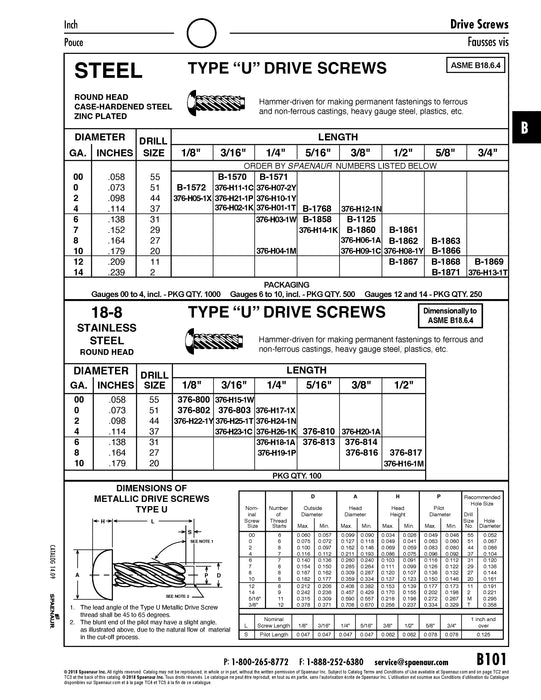

Catalog Page(s) B101
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number B-1809
Screw Type Type U
Head Type Round Head
Length 1/4"
Material Case-Hardened Steel
Finish Trivalent Zinc Plated
Thread Diameter #10 Gauge(0.179")
Compatible Hole Size 0.161"
Compatible Drill Size No 20
Head Diameter 0.359" Max; 0.334" Min
Head Height 0.137" Max; 0.123" Min
Standard ASME/ANSI B18.6.4
