Type U Drive Screw, Round Head, #6 Gauge(0.138") x 1/4" Length, Case-Hardened Steel Trivalent Zinc Plated, ASME/ANSI B18.6.4 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 376-H03-1W

Legacy Part Number(s): B-1857

Type U Drive Screw, Round Head, #6 Gauge(0.138") x 1/4" Length, Case-Hardened Steel Trivalent Zinc Plated, ASME/ANSI B18.6.4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 376-H03-1W

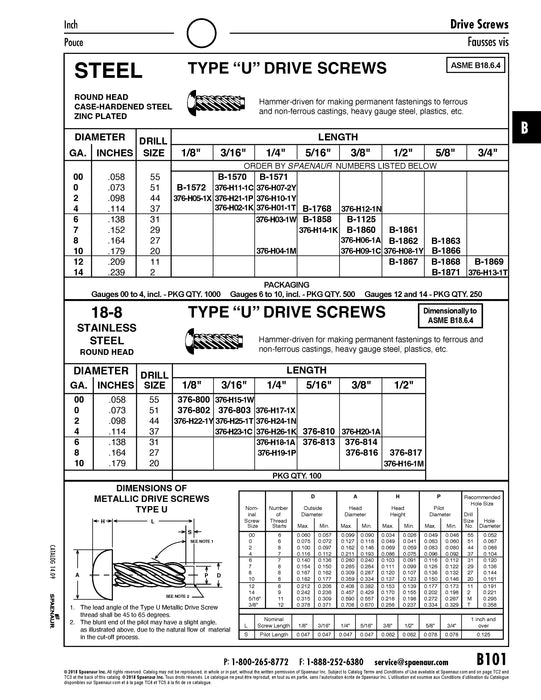

Catalog Page(s) B101
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number B-1857
Screw Type Type U
Head Type Round Head
Length 1/4"
Material Case-Hardened Steel
Finish Trivalent Zinc Plated
Thread Diameter #6 Gauge(0.138")
Compatible Hole Size 0.120"
Compatible Drill Size No 31
Head Diameter 0.260" Max; 0.240" Min
Head Height 0.103" Max; 0.091" Min
Standard ASME/ANSI B18.6.4
