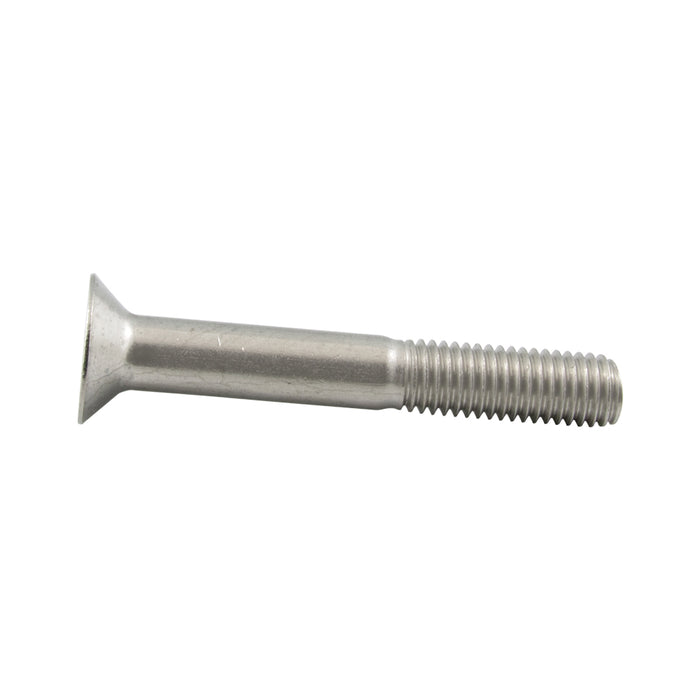

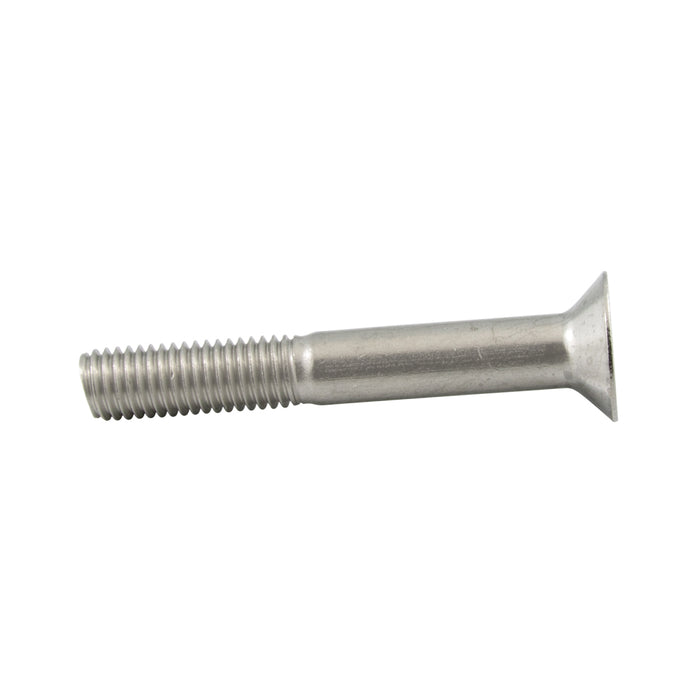

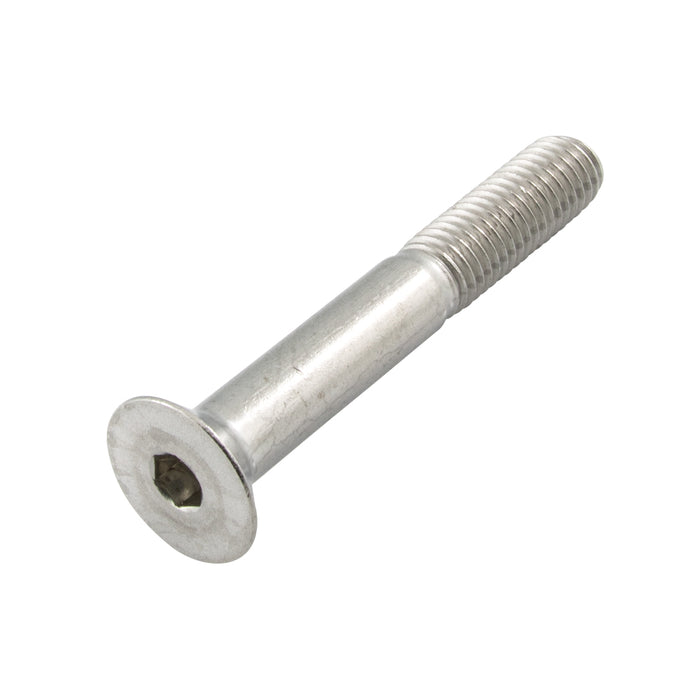

Flat Head Hex Socket Cap Screw 5/16"-24 UNF x 1" LONG 18-8 Stainless Steel ANSI B18.3-1986

Part Number: 370-338

Flat Head Hex Socket Cap Screw 5/16"-24 UNF x 1" LONG 18-8 Stainless Steel ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 370-338

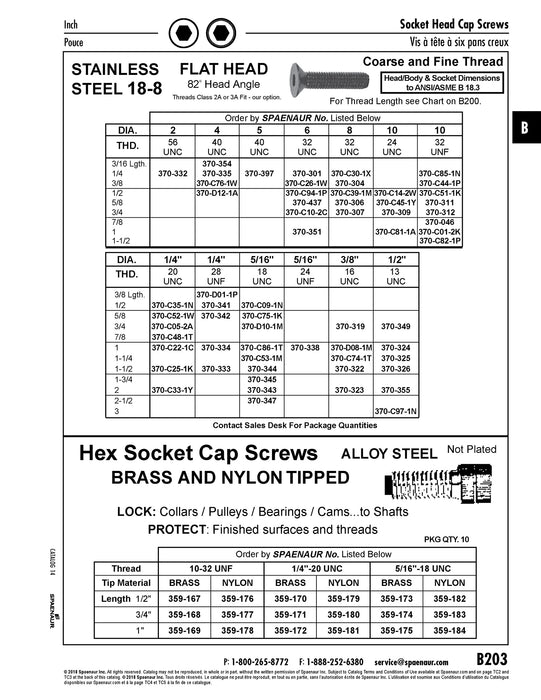

Catalog Page(s) B203
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Hex Socket
Length 1"
Material Stainless Steel
Material Grade | Material Class 18-8
Head Diameter Max 15/32"
Head Height Max 5/16"
Thread Size 5/16"-24
Thread Standard UNF
Countersunk 82°
Key Size 1/4"
Standard ASME/ANSI B18.3
