Hex Socket Cap Screw, DIN 912 M20 x 2.50P x 50mm LG, Full Thread CL 12.9 Med Carb Alloy Steel Plain DIN 912/12.9/Full M20X50 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 366-837

Hex Socket Cap Screw, DIN 912 M20 x 2.50P x 50mm LG, Full Thread CL 12.9 Med Carb Alloy Steel Plain DIN 912/12.9/Full M20X50

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-837

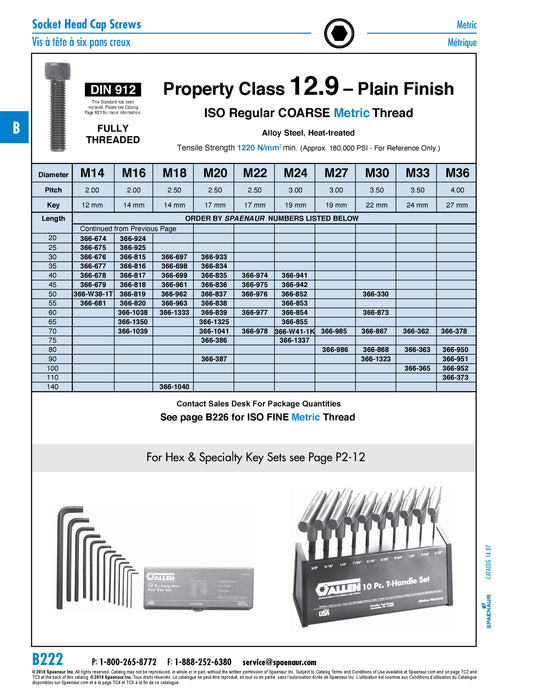

Catalog Page(s) B222
System of Measurement Metric
Head Type Socket Head
Drive Type Hex Socket
Length 50 mm
Material Alloy Steel
Finish Plain
Material Grade | Material Class Class 12.9
Head Diameter 30 mm
Head Height Max 20 mm
Thread Size M20 x 2.50
Key Size 17 mm
Standard DIN 912
Tensile Strength Min 1220 MPa
