Hex Socket Cap Screw DIN 912 M8 x 1.25 x 10mm LG, Full Thread CL 12.9 Med Carb Alloy Steel Plain DIN 912/12.9/Full M8X10 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 366-752

Hex Socket Cap Screw DIN 912 M8 x 1.25 x 10mm LG, Full Thread CL 12.9 Med Carb Alloy Steel Plain DIN 912/12.9/Full M8X10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-752

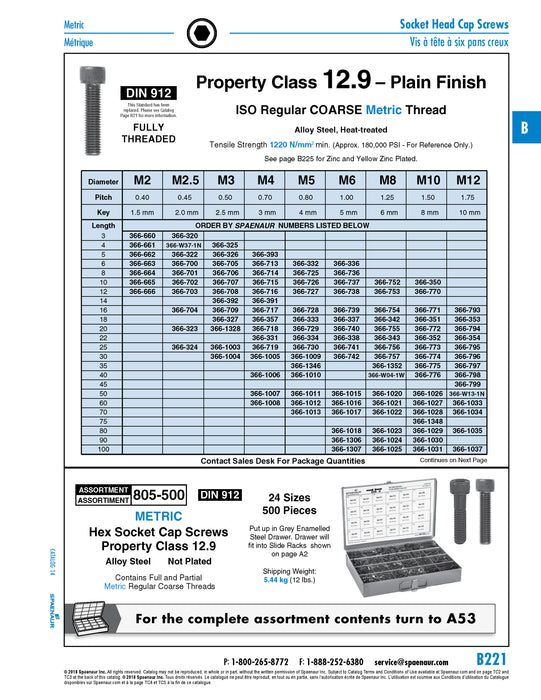

Catalog Page(s) B221
System of Measurement Metric
Head Type Socket Head
Drive Type Hex Socket
Length 10 mm
Material Alloy Steel
Finish Plain
Material Grade | Material Class Class 12.9
Head Diameter 13 mm
Head Height Max 8 mm
Thread Size M8 x 1.25
Key Size 6 mm
Standard DIN 912
Tensile Strength Min 1220 MPa
