Hex SKT Flat HD Cap Screw DIN 7991 M4 x 0.70 x 10mm LG Full Thread CL 10.9 Med Carb Alloy Steel Plain DIN 7991/10.9/Full M4X10 by Spaenaur Inc.

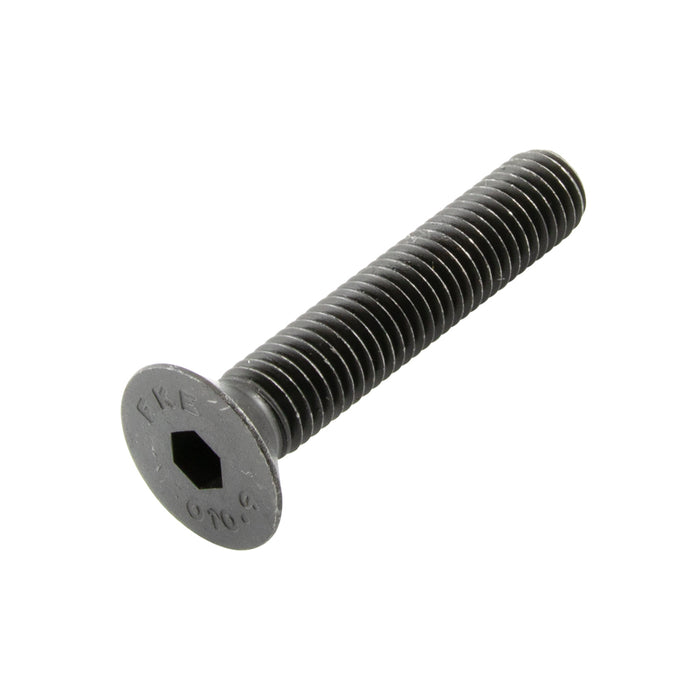

*Representative images - please refer to the product specifications for exact product information

Part Number: 366-573

Hex SKT Flat HD Cap Screw DIN 7991 M4 x 0.70 x 10mm LG Full Thread CL 10.9 Med Carb Alloy Steel Plain DIN 7991/10.9/Full M4X10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-573

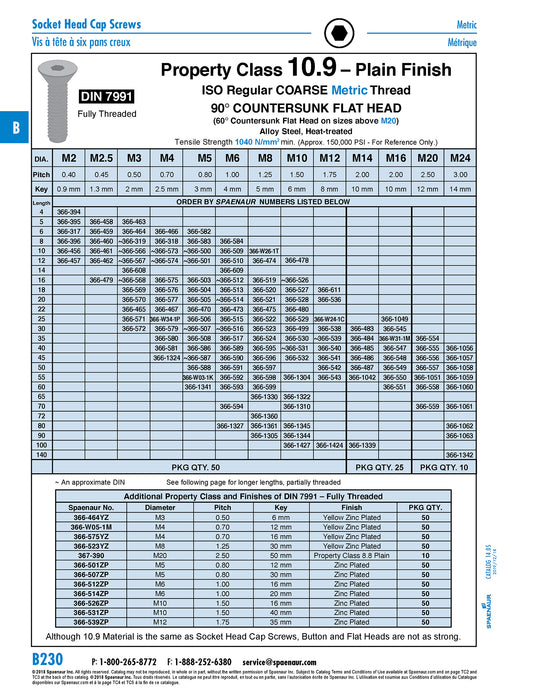

Catalog Page(s) B230
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Hex Socket
Length 10 mm
Material Alloy Steel
Finish Plain
Material Grade | Material Class Class 10.9
Head Diameter 8 mm
Head Height Max 2.3 mm
Thread Size M4 x 0.70 mm
Countersunk 90°
Key Size 2.5 mm
Standard DIN 7991
Tensile Strength Min 835 MPa
