Hex SKT Flat HD Cap Screw DIN 7991 M3 x 0.50 Pitch x 18mm, Full Thread CL 10.9 Med Carb Alloy Steel Plain DIN 7991/10.9/Full M3X18

Part Number: 366-569

Hex SKT Flat HD Cap Screw DIN 7991 M3 x 0.50 Pitch x 18mm, Full Thread CL 10.9 Med Carb Alloy Steel Plain DIN 7991/10.9/Full M3X18

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-569

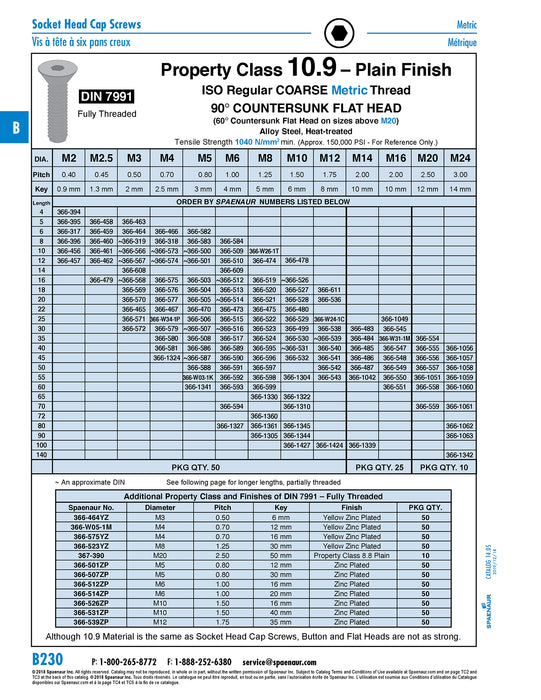

Catalog Page(s) B230
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Hex Socket
Length 18 mm
Material Alloy Steel
Finish Plain
Material Grade | Material Class Class 10.9
Head Diameter Max 6 mm
Head Height Max 1.7 mm
Thread Size M3 x 0.50 mm
Countersunk 90°
Key Size 2 mm
Standard DIN 7991
