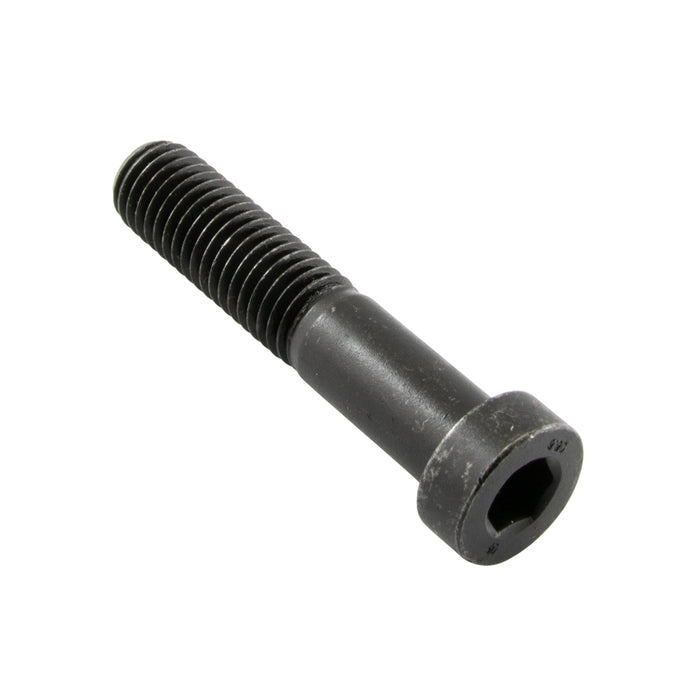

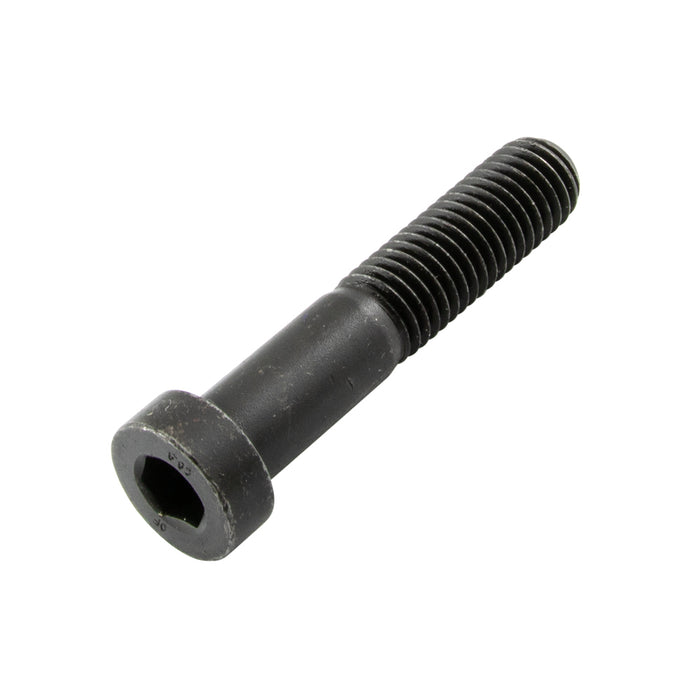

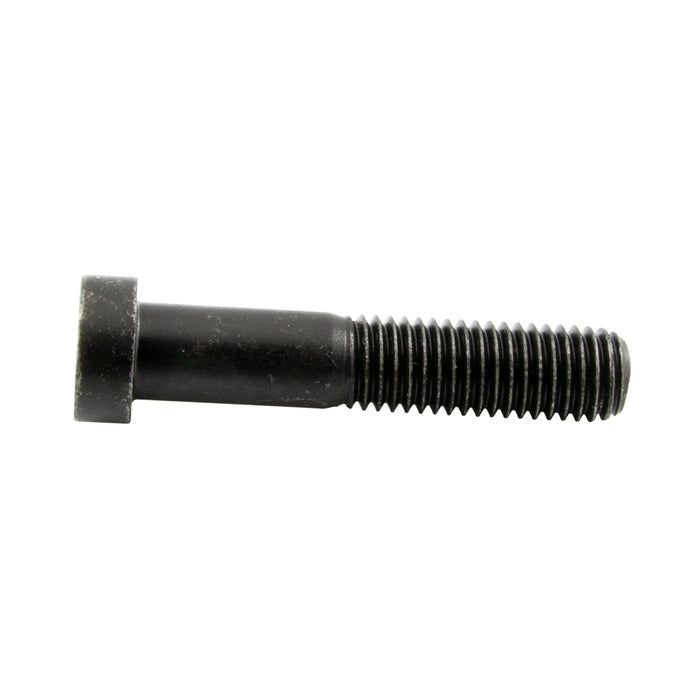

Hex Socket Low Head Cap Screw M5 x 55 CL 8.8 Steel Plain DIN 7984/8.8 M5X55

Part Number: 366-1093

Hex Socket Low Head Cap Screw M5 x 55 CL 8.8 Steel Plain DIN 7984/8.8 M5X55

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-1093

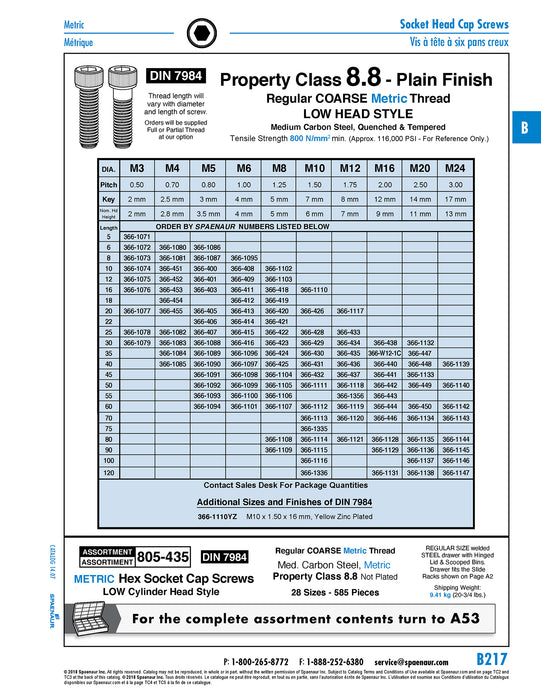

Catalog Page(s) B217
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Low Head
Drive Type Hex Socket
Length 55 mm
Material Medium Carbon Steel
Finish Plain
Material Grade | Material Class Class 8.8
Head Height Nom 3.5 mm
Thread Size M5 x 0.80 mm
Key Size 3 mm
Standard DIN 7984
Tensile Strength Min 800, 116000 N/mm², psi
