Hex Socket Shoulder Screw ISO 7379 12mm x 50mm Shoulder, M10 Thread CL 12.9 Alloy Steel Plain ISO 7379/12.9 12X50/M10 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 365-P01-1A

Legacy Part Number(s): 365-031

Hex Socket Shoulder Screw ISO 7379 12mm x 50mm Shoulder, M10 Thread CL 12.9 Alloy Steel Plain ISO 7379/12.9 12X50/M10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 365-P01-1A

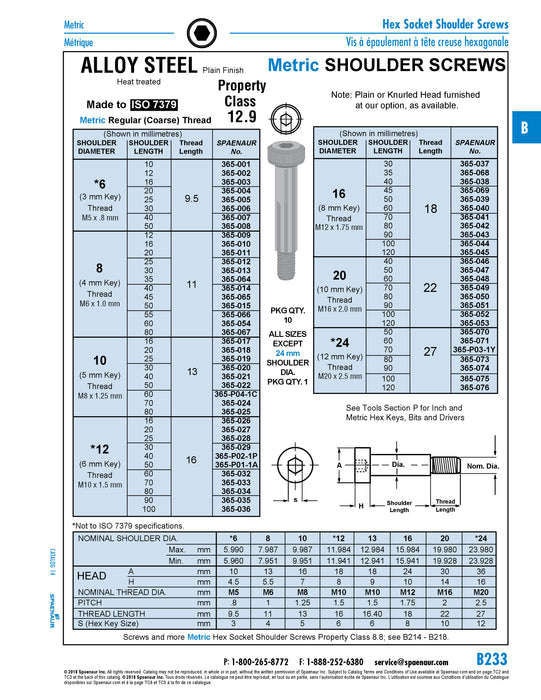

Catalog Page(s) B233
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 365-031
Material Alloy Steel
Finish Plain
Material Grade | Material Class 12.9
Head Type Plain or Knurled Head
Drive Type Hex Socket
Head Diameter 18 mm
Head Height 8 mm
Thread Size M10 x 1.50 mm
Thread Class 3A
Thread Length 16 millimetres
Key Size - key_size_txt 6 mm
Shoulder Diameter 12 Nominal; 11.984 Max.; 11.941 Min. mm
Shoulder Length 50 millimetres
