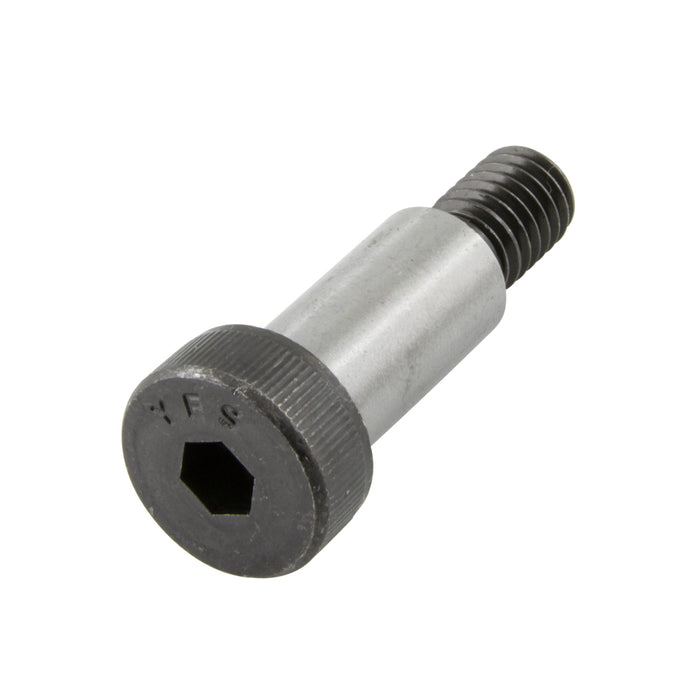

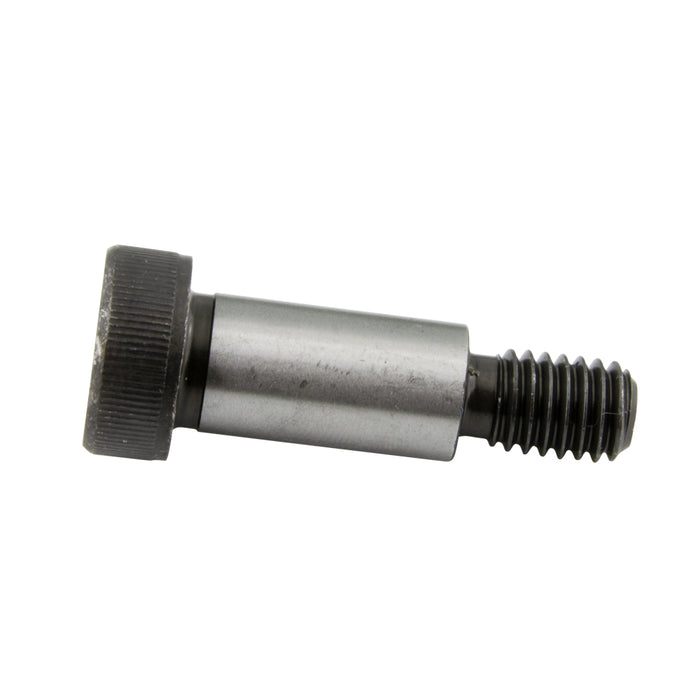

Hex Socket Shoulder Screw ISO 7379 24mm x 90mm - M20 Thread CL 12.9 Alloy Steel Plain ISO 7379/12.9 24X90/M20

*Representative images - please refer to the product specifications for exact product information

Part Number: 365-074

Hex Socket Shoulder Screw ISO 7379 24mm x 90mm - M20 Thread CL 12.9 Alloy Steel Plain ISO 7379/12.9 24X90/M20

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 365-074

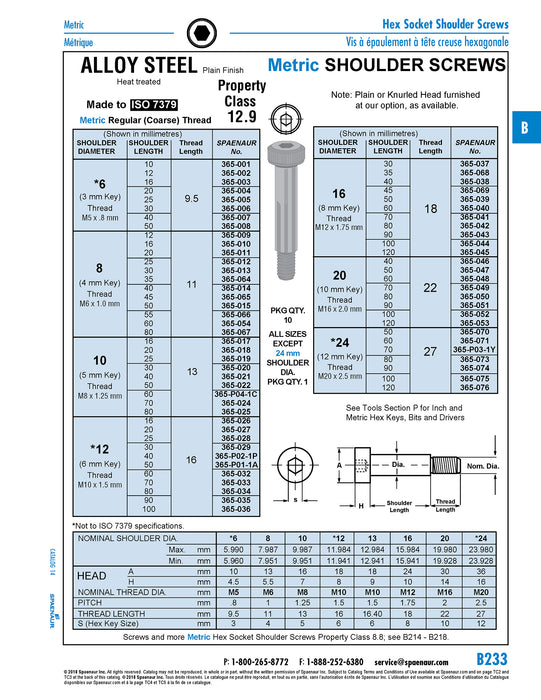

Catalog Page(s) B233
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Alloy Steel
Finish Plain
Material Grade | Material Class 12.9
Head Type Plain or Knurled Head
Drive Type Hex Socket
Head Diameter 36 mm
Head Height 16 mm
Thread Size M20 x 2.50 mm
Thread Class 3A
Thread Length 27 millimetres
Key Size - key_size_txt 12 mm
Shoulder Diameter 24 Nominal; 23.980 Max.; 23.928 Min. mm
Shoulder Length 90 millimetres
