Hex Socket Shoulder Screw ISO 7379 10mm x 20mm Shoulder (M8 Thread) CL 12.9 Alloy Steel Plain ISO 7379/12.9 10X20/M8

*Representative images - please refer to the product specifications for exact product information

Part Number: 365-018

Hex Socket Shoulder Screw ISO 7379 10mm x 20mm Shoulder (M8 Thread) CL 12.9 Alloy Steel Plain ISO 7379/12.9 10X20/M8

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 365-018

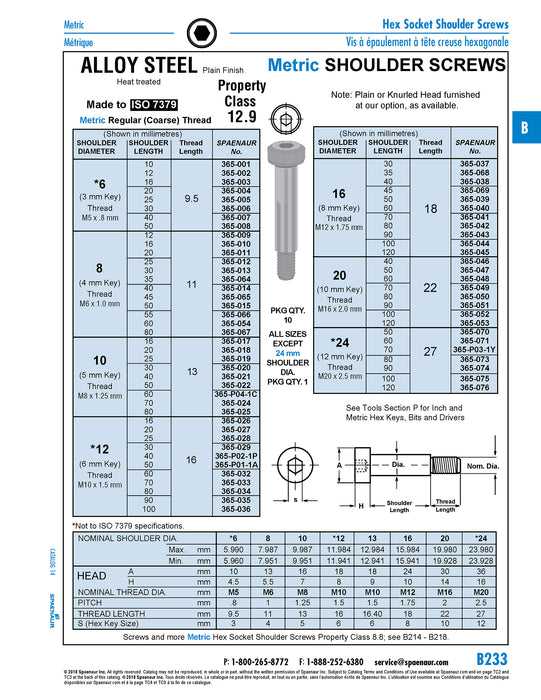

Catalog Page(s) B233
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Alloy Steel
Finish Plain
Material Grade | Material Class 12.9
Head Type Plain or Knurled Head
Drive Type Hex Socket
Thread Size M8 x 1.25 mm
Thread Class 3A
Shoulder Diameter 10 Nominal; 9.987 Max.; 9.951 Min. mm
Shoulder Length 20 millimetres
