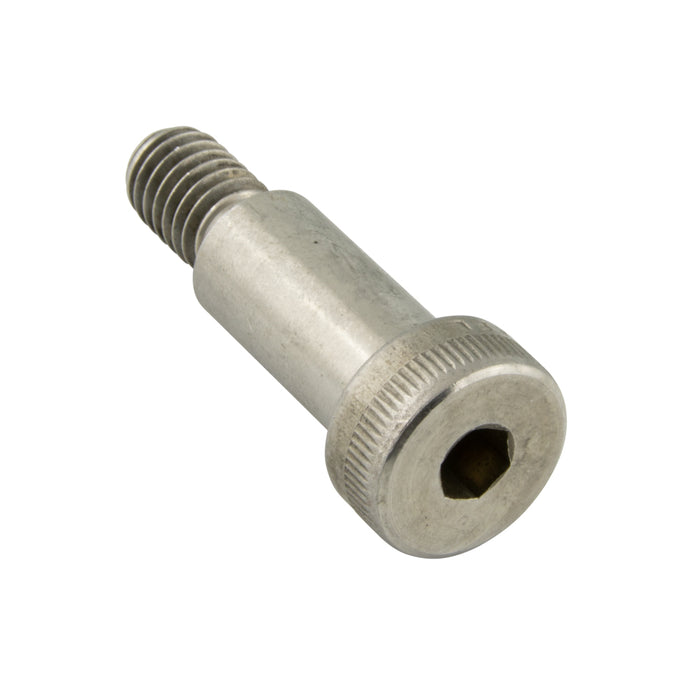

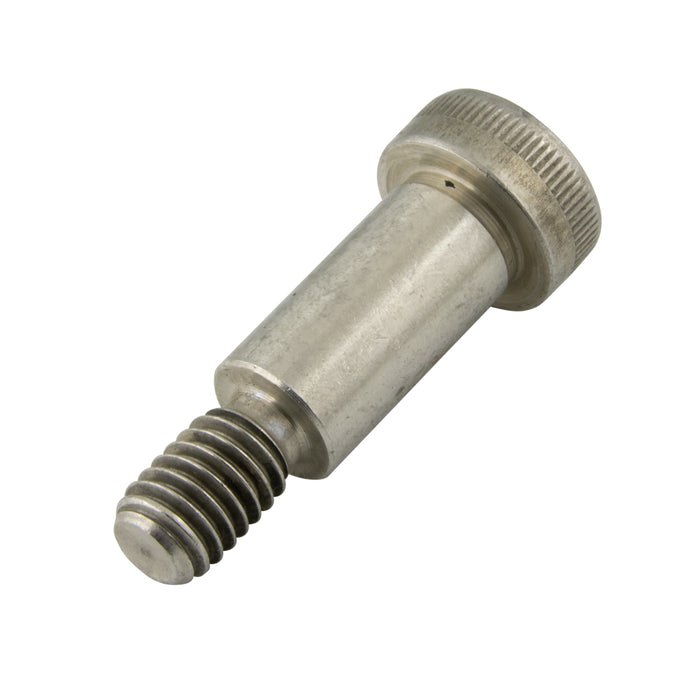

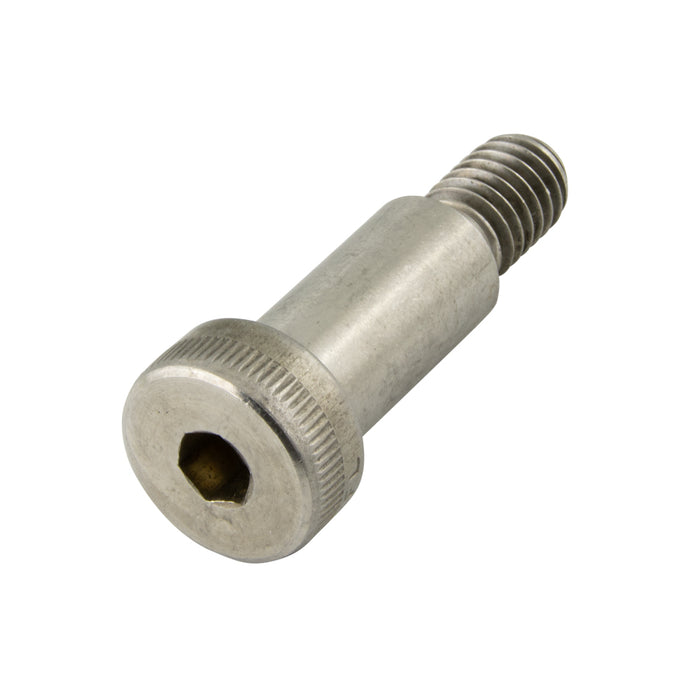

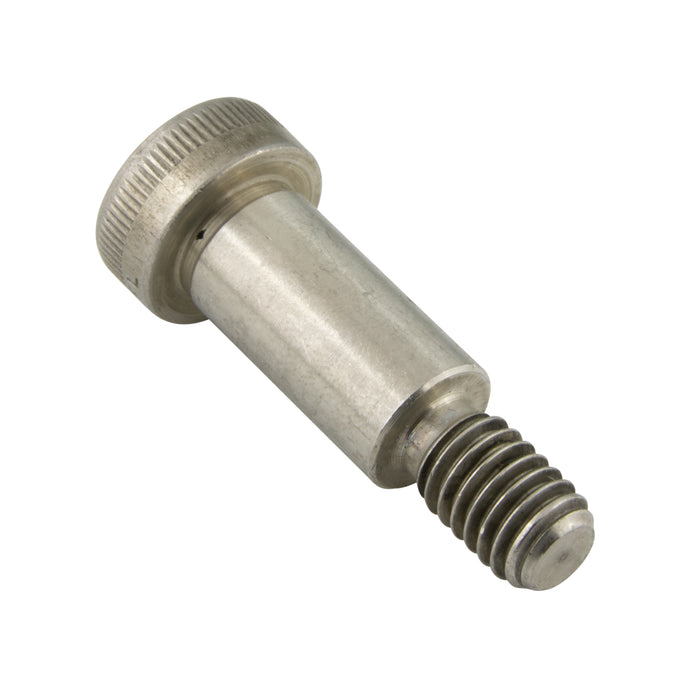

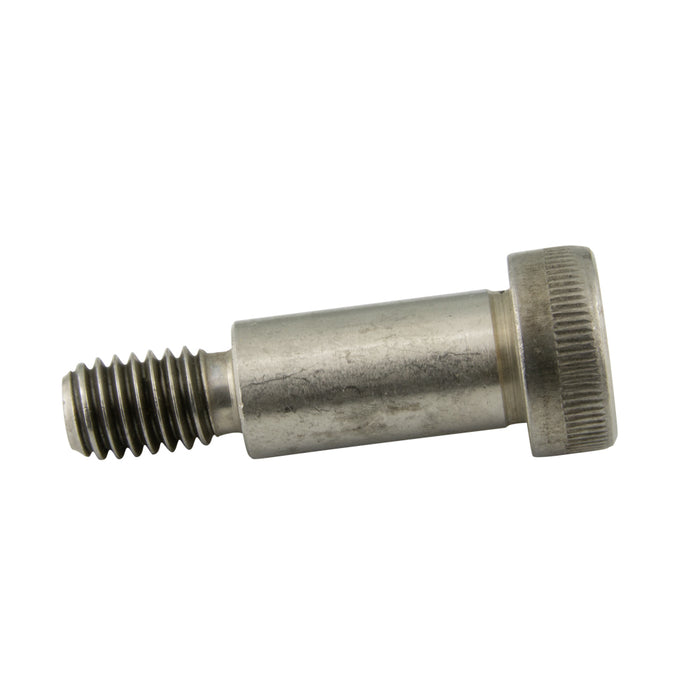

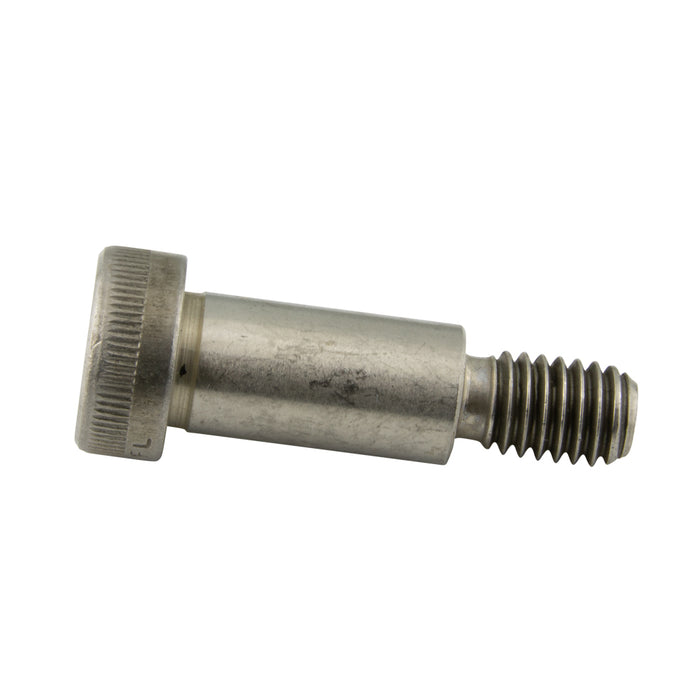

Hex Socket Shoulder Screw 1/4" x 1-1/2" (#10-24) 18-8 Stainless Steel ANSI B18.3

*Representative images - please refer to the product specifications for exact product information

Part Number: 364-A15-1M

Legacy Part Number(s): 364-806

Hex Socket Shoulder Screw 1/4" x 1-1/2" (#10-24) 18-8 Stainless Steel ANSI B18.3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 364-A15-1M

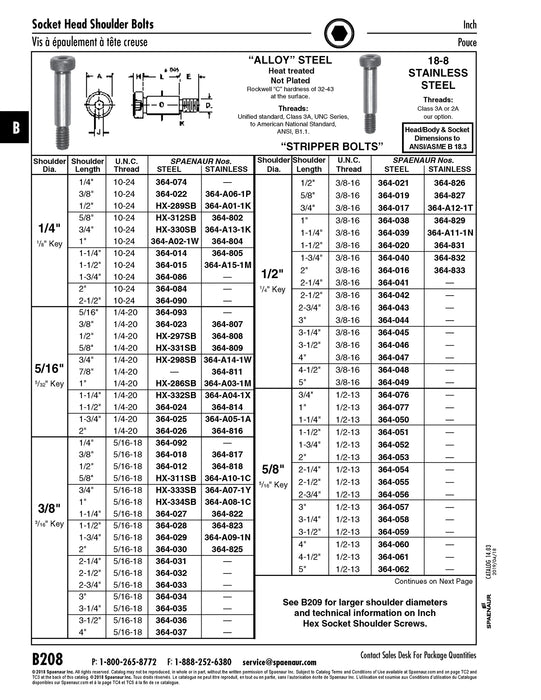

Catalog Page(s) B208
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 364-806
Material Stainless Steel
Material Grade | Material Class 18-8
Head Type Plain or Knurled Head
Drive Type Hex Socket
Thread Size #10-24
Thread Class 3A
Hardness RC32-RC43
Shoulder Diameter 0.250 Nom; 0.2480 Max; 0.2460 Min
Shoulder Length 1-1/2 "
