Part Number: 364-051

Hex Socket Shoulder Screw 5/8" x 1 1/2" (1/2"-13 UNC Thread) Alloy Steel Quench & Temp Plain ANSI B18.3 Latest

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 364-051

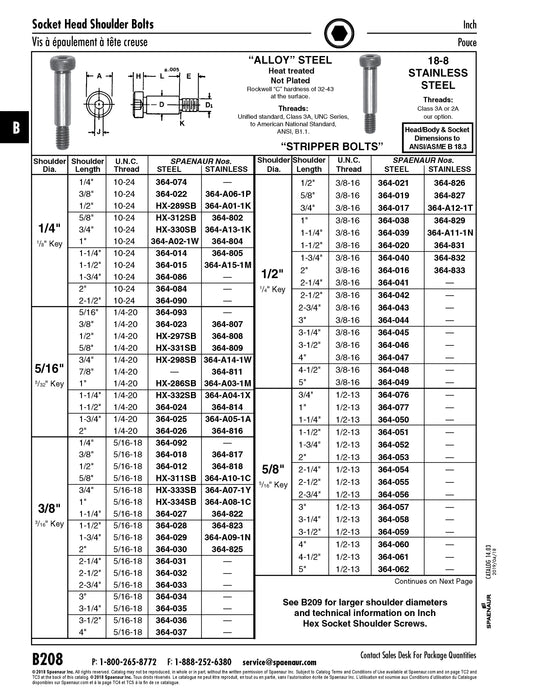

Catalog Page(s) B208
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Stainless Steel
Finish Plain
Material Grade | Material Class 18-8
Head Type Plain or Knurled Head
Drive Type Hex Socket
Thread Size 1/2"-13
Thread Class 3A
Hardness RC32-RC43
Shoulder Diameter 0.625 Nom; 0.6230 Max; 0.6210 Min
Shoulder Length 1-1/2 "
