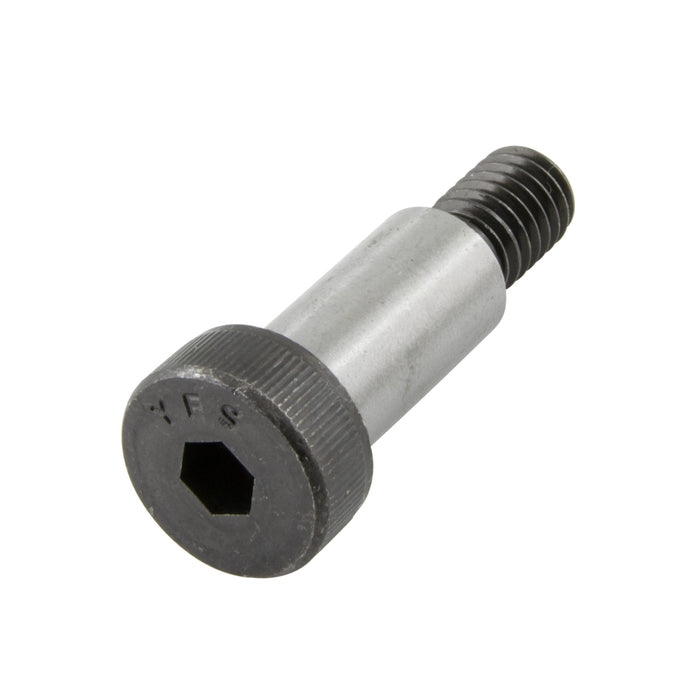

Hex Socket Shoulder Screw 3/8" x 1 1/2" (5/16"-18 UNC Thread) Alloy Steel Quench & Temp Plain

Part Number: 364-028

Hex Socket Shoulder Screw 3/8" x 1 1/2" (5/16"-18 UNC Thread) Alloy Steel Quench & Temp Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 364-028

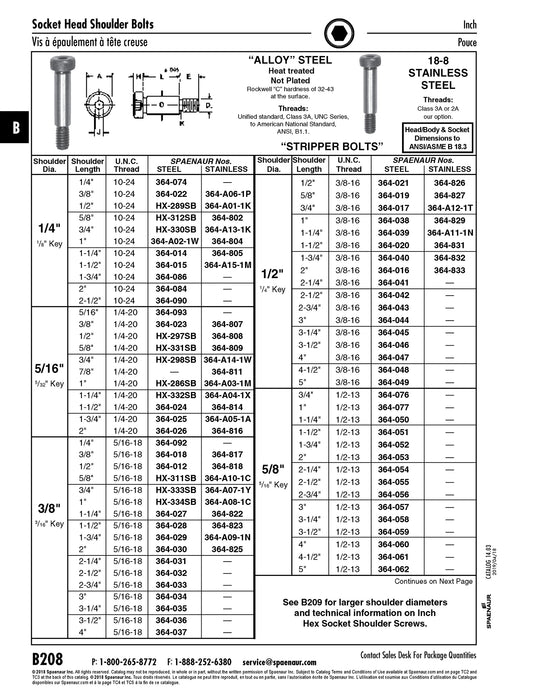

Catalog Page(s) B208
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Stainless Steel
Finish Plain
Material Grade | Material Class 18-8
Head Type Plain or Knurled Head
Drive Type Hex Socket
Thread Size 5/16"-18
Thread Class 3A
Hardness RC32-RC43
Shoulder Diameter 0.375 Nom; 0.3730 Max; 0.3710 Min
Shoulder Length 1-1/2 "
