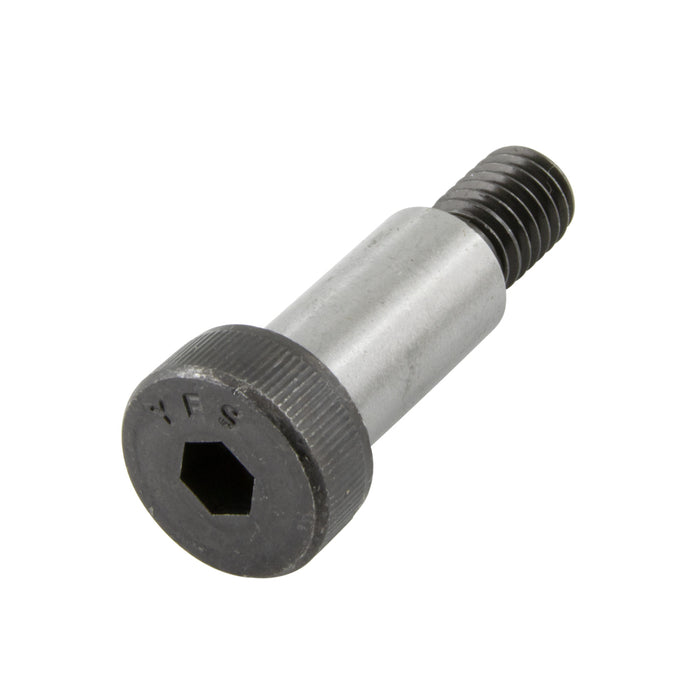

Hex Socket Shoulder Screw with Pellet Nylon Insert 5/16-18 THRD 3/8" x 1/2" Shoulder (5/16-18 THRD) Alloy Steel Plain / Nylon Insert

*Representative images - please refer to the product specifications for exact product information

Part Number: 359-208

Hex Socket Shoulder Screw with Pellet Nylon Insert 5/16-18 THRD 3/8" x 1/2" Shoulder (5/16-18 THRD) Alloy Steel Plain / Nylon Insert

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-208

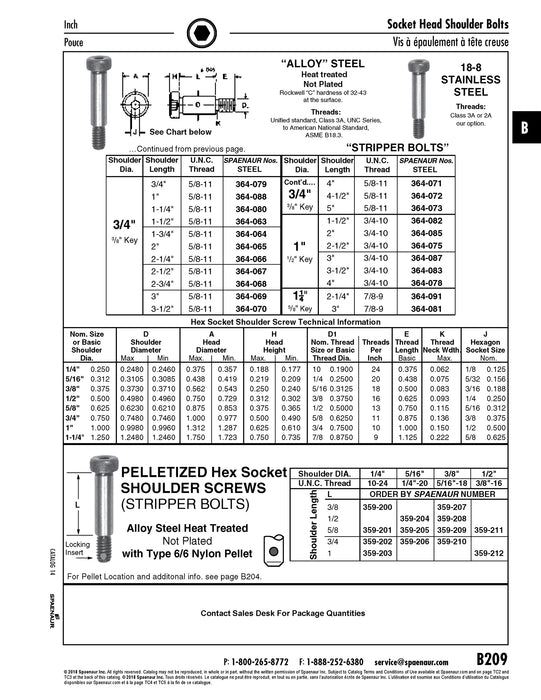

Catalog Page(s) B209
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Alloy Steel
Finish Plain
Material Grade | Material Class Grade 8
Head Type Plain or Knurled Head
Drive Type Hex Socket
Thread Size 5/16"-18
Thread Class 3A
Shoulder Diameter 0.375 Nom; 0.3730 Max; 0.3710 Min
Shoulder Length 1/2 "
