Button Head Hex Socket Cap Screw with Pellet Nylon Insert 3/8"-16 UNC x 1 1/4" Alloy Steel Plain / Nylon Insert ANSI B18.3-1986

Part Number: 359-145

Button Head Hex Socket Cap Screw with Pellet Nylon Insert 3/8"-16 UNC x 1 1/4" Alloy Steel Plain / Nylon Insert ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-145

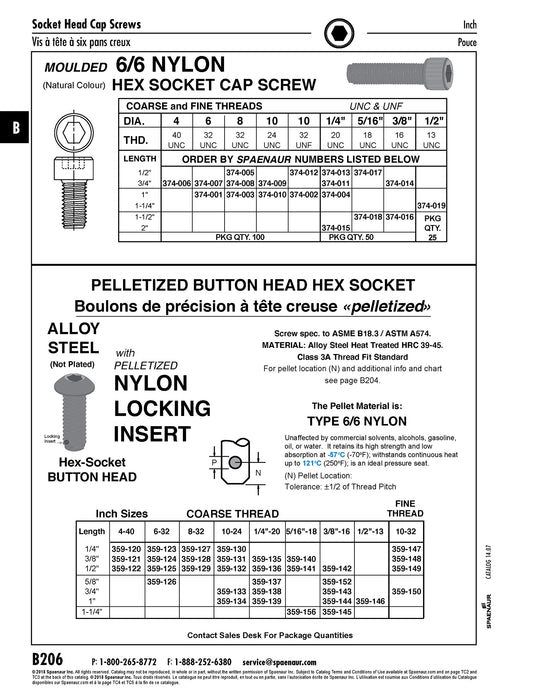

Catalog Page(s) B206
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Button Head
Drive Type Hex Socket
Length 1-1/4"
Material Alloy Steel
Finish Plain
Material Grade | Material Class 6/6
Thread Class 3A
Thread Size 3/8"-16
Thread Locking Pellet Diameter .141 "
Thread Locking Pellet Location 7/32 "
Hardness Rockwell C32-C38
Standard ASME/ANSI B18.3
