Flat Head Hex Socket Cap Screw with Pellet Nylon/Insert 1/2"-20 UNF x 3/4" LG Alloy Steel Plain / Nylon Insert ANSI B18.3-1986

Part Number: 359-118

Flat Head Hex Socket Cap Screw with Pellet Nylon/Insert 1/2"-20 UNF x 3/4" LG Alloy Steel Plain / Nylon Insert ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-118

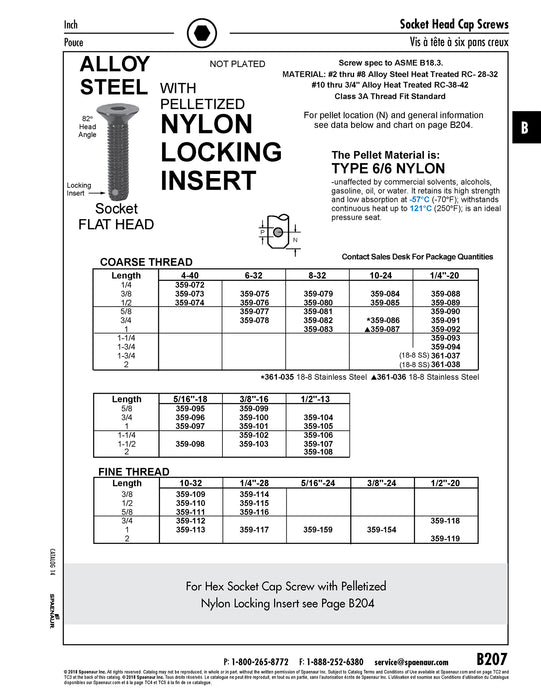

Catalog Page(s) B207
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Hex Socket
Length 3/4"
Material Alloy Steel
Finish Plain
Material Grade | Material Class 6/6
Thread Class 3A
Thread Size 1/2"-20
Thread Locking Pellet Diameter .156 "
Thread Locking Pellet Location 1/4 "
Countersunk 82°
Hardness Rockwell C38-C42
Standard ASME/ANSI B18.3
