Hex Socket Cap Screw with Pelletized Nylon Insert 5/16-24 UNF x 1/2" Alloy Steel/Nylon Insert Plain Finish ANSI B18.3-1986 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 359-064

Hex Socket Cap Screw with Pelletized Nylon Insert 5/16-24 UNF x 1/2" Alloy Steel/Nylon Insert Plain Finish ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-064

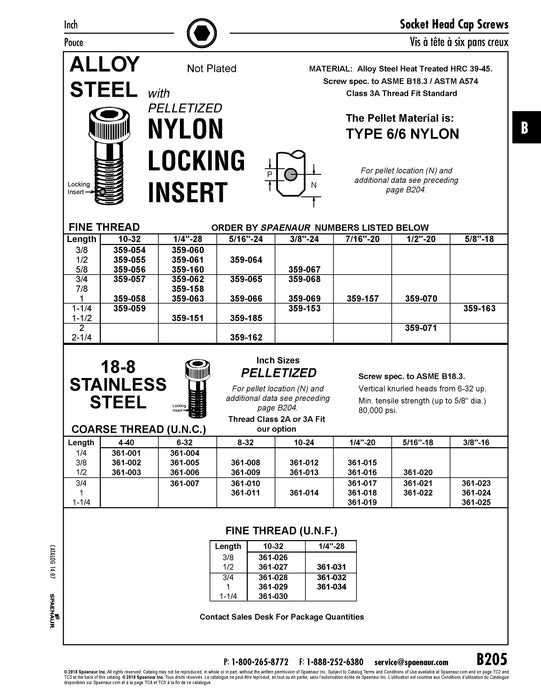

Catalog Page(s) B205
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Socket Head
Drive Type Hex Socket
Length 1/2"
Material Alloy Steel
Finish Plain
Thread Size 5/16"-24
Thread Locking Pellet Diameter .125 "
Thread Locking Pellet Location 13/64 "
Standard ASME/ANSI B18.3
