Hex Socket Cap Screw with Pelletized Nylon Insert #10-32 UNF x 1 1/4" Alloy Steel/Nylon Insert Not Plated ANSI B18.3-1986

Part Number: 359-059

Hex Socket Cap Screw with Pelletized Nylon Insert #10-32 UNF x 1 1/4" Alloy Steel/Nylon Insert Not Plated ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-059

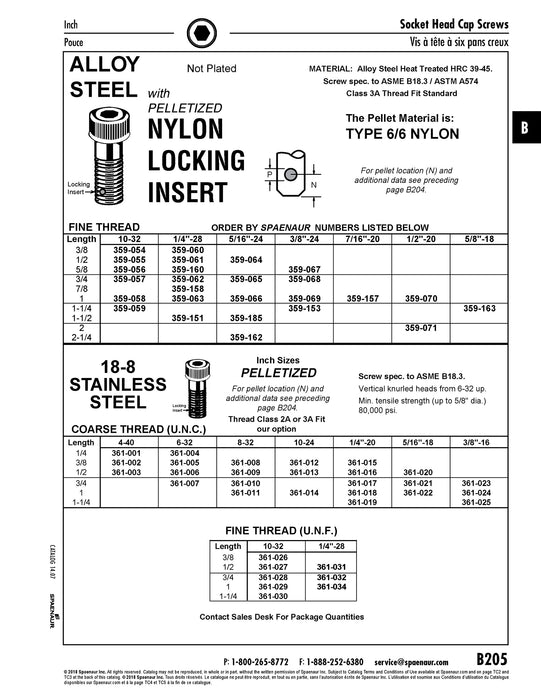

Catalog Page(s) B205
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Socket Head
Drive Type Hex Socket
Length 1-1/4"
Material Alloy Steel
Finish Plain
Material Grade | Material Class 6/6
Thread Class 3A
Thread Size #10-32
Thread Locking Pellet Diameter .093 "
Thread Locking Pellet Location 5/32 "
Hardness Rockwell C38-C42
Standard ASME/ANSI B18.3
