Hex Head Cap Screw 1/4"-20 UNC x 3 1/2" LONG 316 Stainless Steel ANSI B18.2.1-Latest by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 346-D10-1N

Legacy Part Number(s): 346-063

Hex Head Cap Screw 1/4"-20 UNC x 3 1/2" LONG 316 Stainless Steel ANSI B18.2.1-Latest

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 346-D10-1N

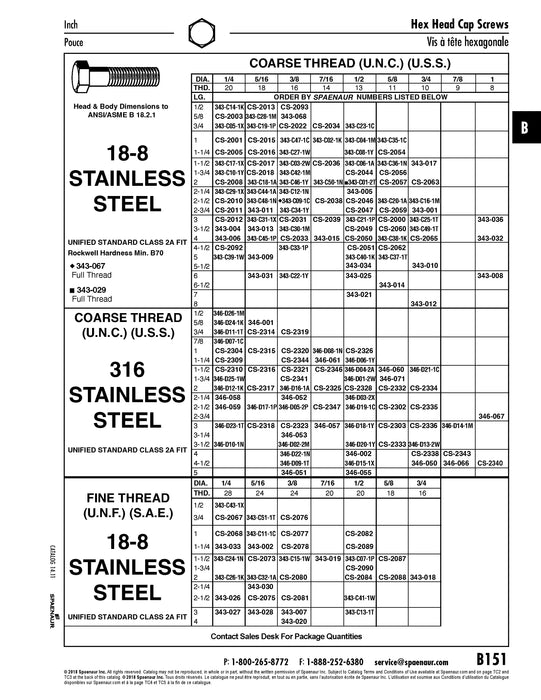

Catalog Page(s) B151
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 346-063
Head Type Hex Head
Material Stainless Steel
Material Grade | Material Class 316
Thread Type Partially-Threaded
Thread Size 1/4"-20
Thread Class 2A
Length 3-1/2"
Standard ASME/ANSI B18.2.1
