Hex Head Cap Screw 1/4"- 20 UNC x 1 3/4" 18-8 Stainless Steel ANSI B18.2.1-1965 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 343-C10-1Y

Legacy Part Number(s): CS-2007

Hex Head Cap Screw 1/4"- 20 UNC x 1 3/4" 18-8 Stainless Steel ANSI B18.2.1-1965

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 343-C10-1Y

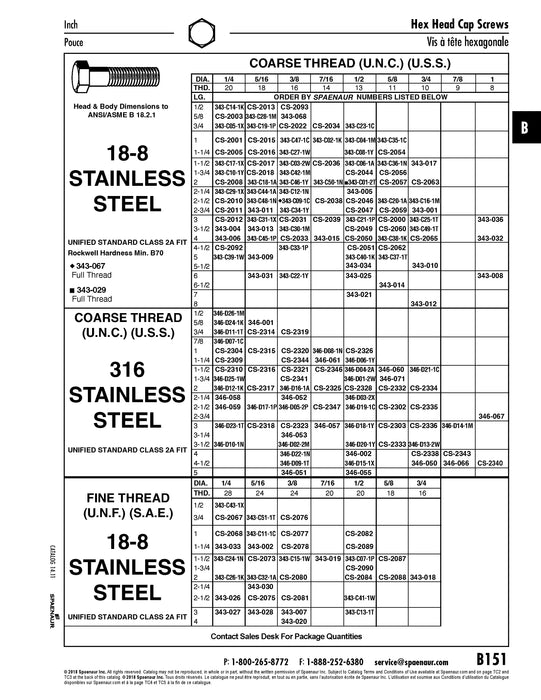

Catalog Page(s) B151
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number CS-2007
Head Type Hex Head
Material Stainless Steel
Material Grade | Material Class 18-8
Thread Type Partially-Threaded
Thread Size 1/4"-20
Length 1-3/4"
Head Diameter Max 7/16"
Head Height 5/32"
Standard ASME/ANSI B18.2.1
