Hex Head Cap Screw DIN 931 M36 x 4.00 x 200mm LG, Partial THRD Class 10.9 Steel Plain Finish DIN 931/10.9 M36X200

Part Number: 332-297

Hex Head Cap Screw DIN 931 M36 x 4.00 x 200mm LG, Partial THRD Class 10.9 Steel Plain Finish DIN 931/10.9 M36X200

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 332-297

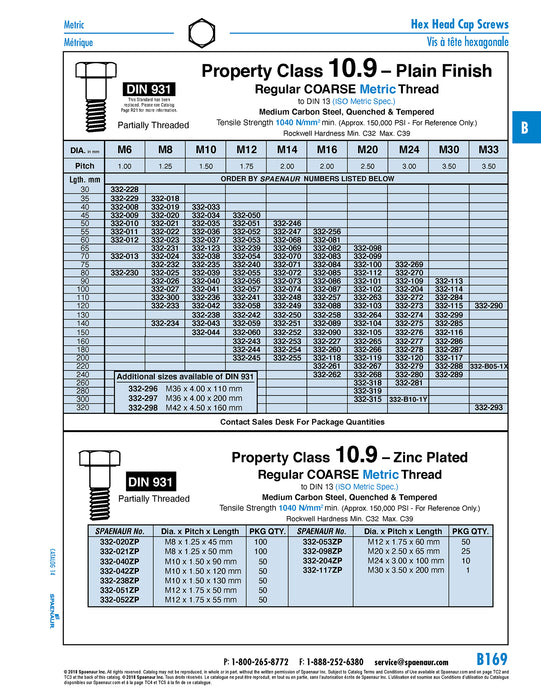

Catalog Page(s) B169
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 10.9
Thread Type Partially-Threaded
Thread Size M36 x 4.00 mm
Length 200 mm
Head Diameter 55 mm
Head Height 22.5 mm
Hardness C32-C39
Standard DIN 931
Tensile Strength 1040 N/mm² min.; 150,000 PSI Approx.
