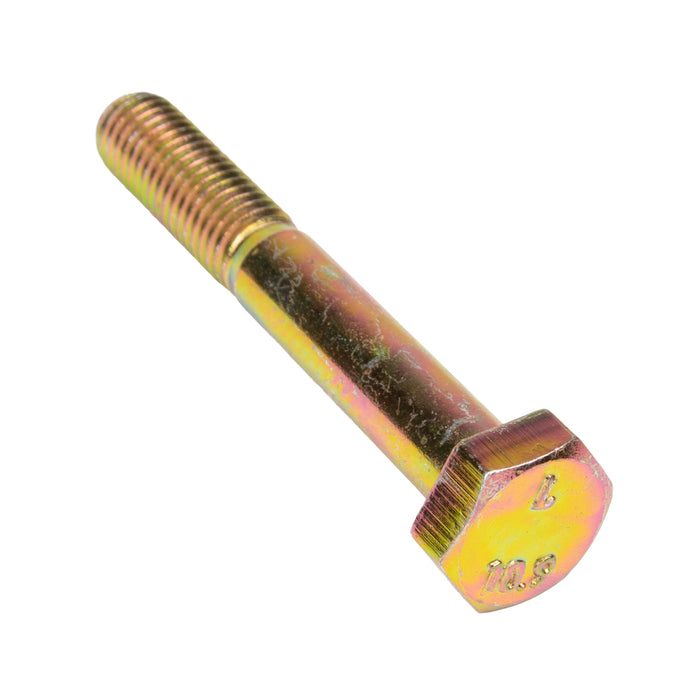

Hex Head Cap Screw DIN 931, M20 x 90mm Partial Thread Class 10.9 Steel Yellow Zinc DIN 931/10.9-YZ M20X90

Part Number: 332-101YZ

Hex Head Cap Screw DIN 931, M20 x 90mm Partial Thread Class 10.9 Steel Yellow Zinc DIN 931/10.9-YZ M20X90

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 332-101YZ

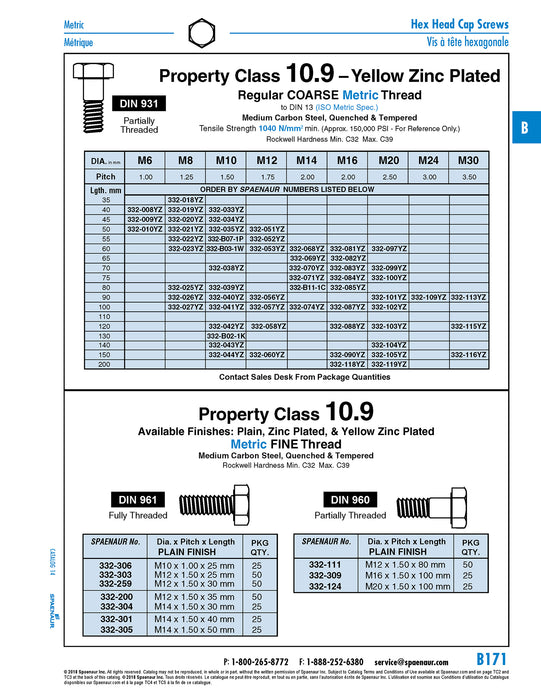

Catalog Page(s) B171
System of Measurement Metric
Head Type Hex Head
Material Steel
Finish Yellow Zinc Plated
Material Grade | Material Class Class 10.9
Thread Type Partially-Threaded
Thread Size M20 x 2.50 mm
Length 90 mm
Head Diameter 30 mm
Head Height 12.5 mm
Standard DIN 931
