Hex Head Cap Screw DIN 931 M12 x 55mm LG, Partial Thread CL 10.9 Steel Zinc Dichromate (Gold) PLTD DIN 931/10.9-YZ M12X55 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 332-052YZ

Hex Head Cap Screw DIN 931 M12 x 55mm LG, Partial Thread CL 10.9 Steel Zinc Dichromate (Gold) PLTD DIN 931/10.9-YZ M12X55

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 332-052YZ

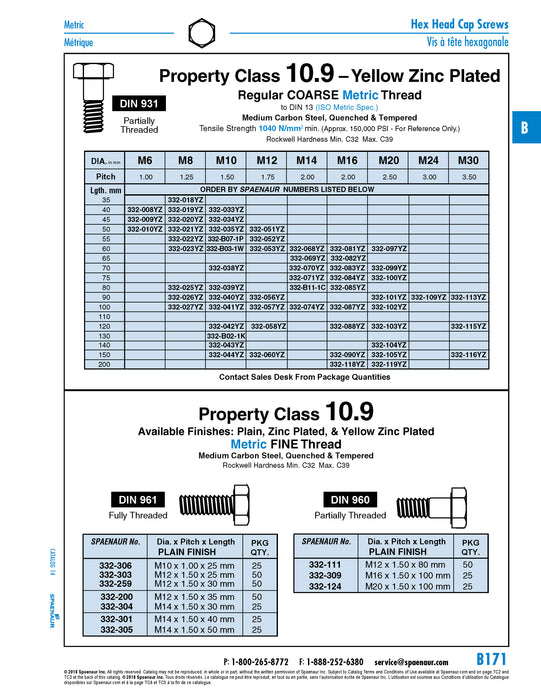

Catalog Page(s) B171
System of Measurement Metric
Head Type Hex Head
Material Steel
Finish Yellow Zinc Plated
Material Grade | Material Class Class 10.9
Thread Type Partially-Threaded
Thread Size M12 x 1.75 mm
Length 55 mm
Head Diameter 19 mm
Head Height 7.5 mm
Standard DIN 931
