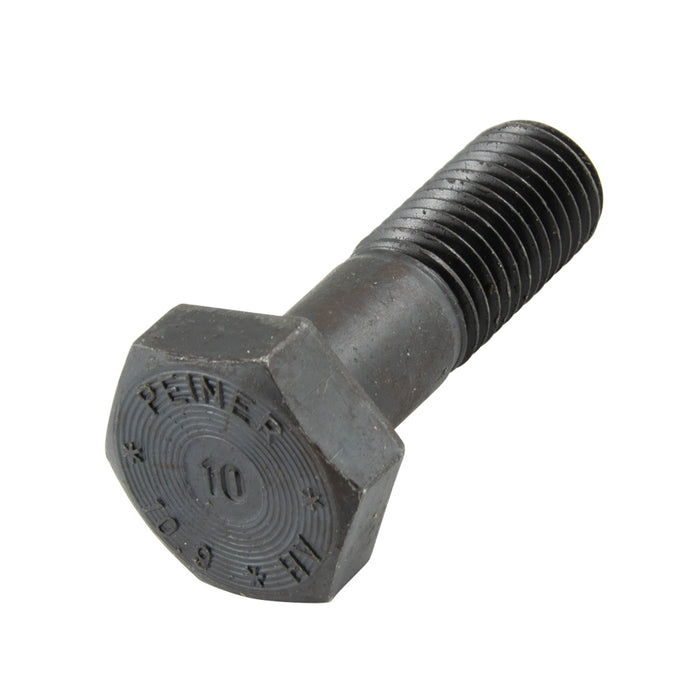

Hex Head Cap Screw DIN 931 M8 x 1.25 x 100mm LG, Partial THRD Class 10.9 Steel Plain Finish DIN 931/10.9 M8X100 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 332-027

Hex Head Cap Screw DIN 931 M8 x 1.25 x 100mm LG, Partial THRD Class 10.9 Steel Plain Finish DIN 931/10.9 M8X100

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 332-027

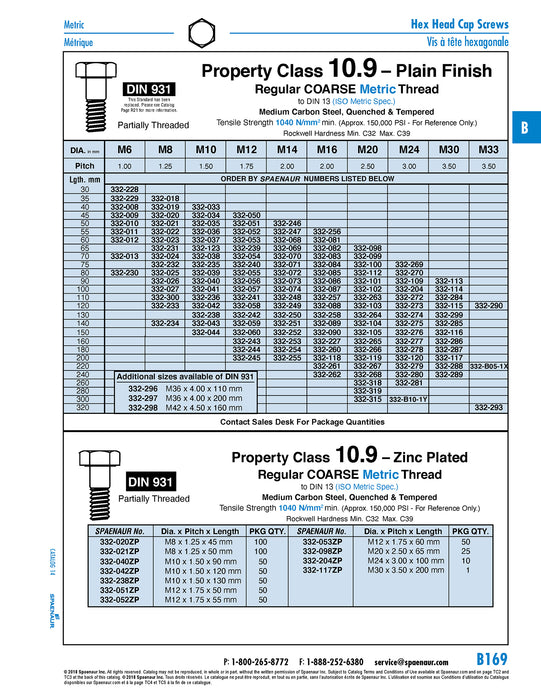

Catalog Page(s) B169
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Steel
Finish Plain
Material Grade | Material Class Class 10.9
Thread Type Partially-Threaded
Thread Size M8 x 1.25 mm
Length 100 mm
Head Diameter 13 mm
Head Height 5.3 mm
Hardness C32-C39
Standard DIN 931
Tensile Strength 1040 N/mm² min.; 150,000 PSI Approx.
