Hex Head Cap Screw, DIN 933 M8 x 1.25 x 30mm LG Full Thread Class 10.9 Steel Yellow Zinc Plated DIN 933/10.9-YZ M8X30 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 332-017YZ

Hex Head Cap Screw, DIN 933 M8 x 1.25 x 30mm LG Full Thread Class 10.9 Steel Yellow Zinc Plated DIN 933/10.9-YZ M8X30

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 332-017YZ

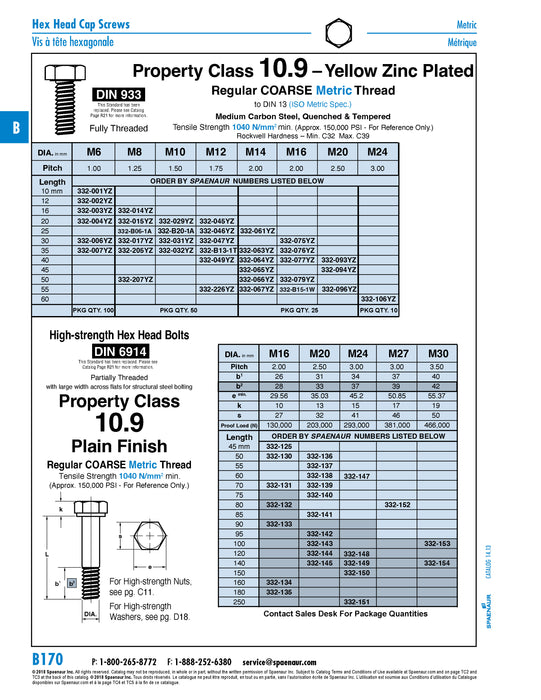

Catalog Page(s) B170
System of Measurement Metric
Head Type Hex Head
Material Steel
Finish Yellow Zinc Plated
Material Grade | Material Class Class 10.9
Thread Type Fully-Threaded
Thread Size M8 x 1.25 mm
Length 30 mm
Head Diameter 13 mm
Head Height 5.3 mm
Standard DIN 933
